By Magewell

USB Capture HDMI 4K Pro

$1,231.19
$1,231.19
SKU: MG-321500000
Availability: In stock with supplier

Overview

The Magewell USB Capture HDMI 4K Pro is a one-channel HDMI capture device for recording, streaming and other video workflows. It supports capture up to 4096×2160 at 60fps with 4:4:4 colour fidelity when connected to a host with USB 3.2 Gen 2x2 connectivity.

Key features
  • One-channel HDMI video capture.
  • Capture up to 4096×2160 at 60fps with 4:4:4 colour fidelity when connected to a compatible 20Gbps USB host.
  • USB 3.2 Gen 2x2 Type-C host interface with transfer rates up to 20Gbps.

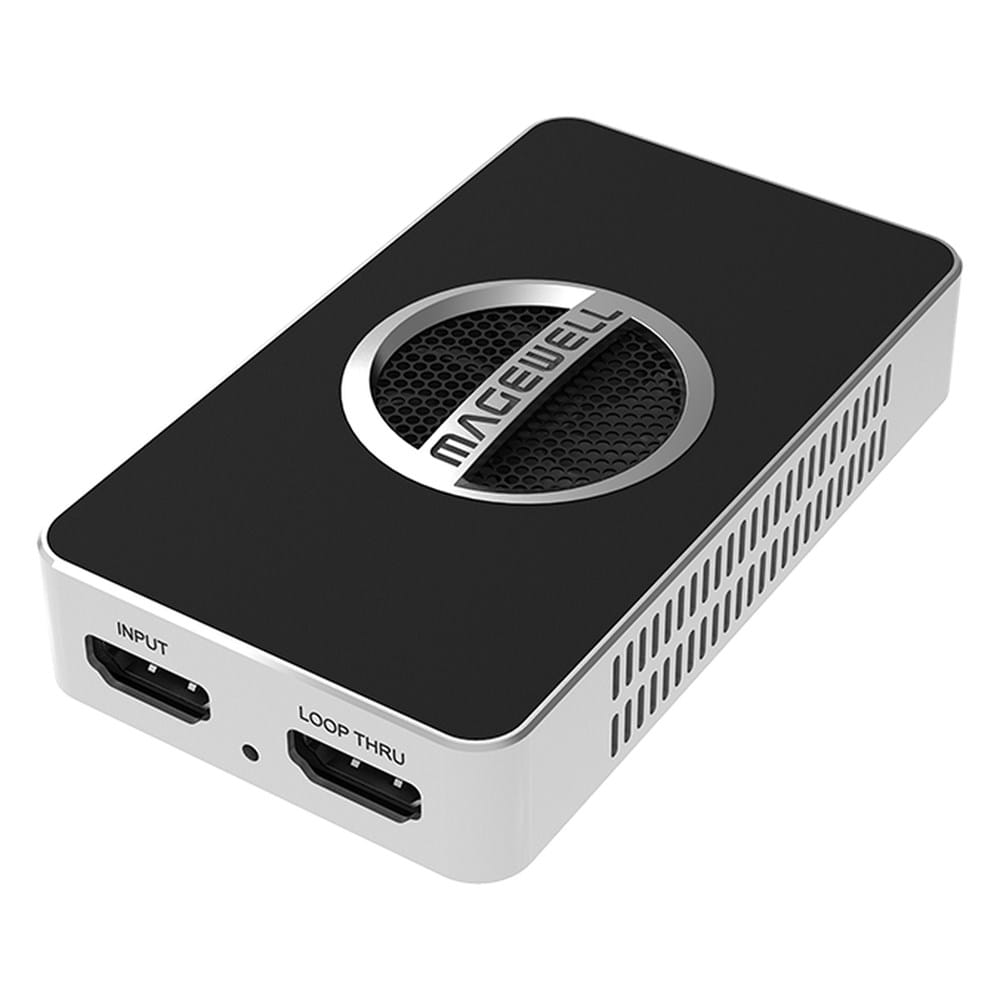

  • HDMI loop-through for sending the source signal to a monitor or projector.
  • Supports embedded HDMI audio.

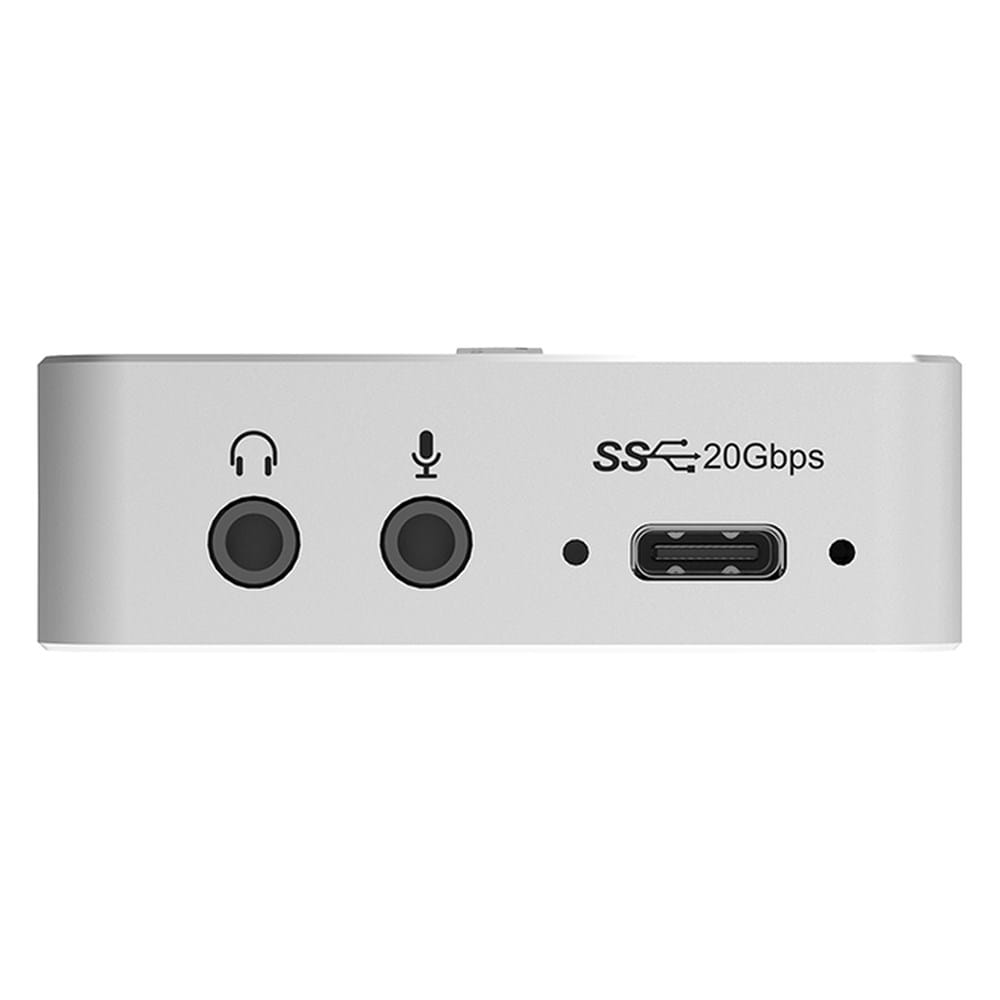

  • 3.5mm audio input and stereo headphone output.
  • Supports 10-bit HDR source capture through software that directly supports the feature via the Magewell SDK.
  • Compatible with lower-performance USB interfaces, with capture capabilities dependent on host connectivity and operating system.
  • Driver-free setup with automatic input signal format detection.
  • UVC compatibility for use with a wide range of video software.
  • Compatible with Windows, macOS, Linux and Chrome OS.
  • Built-in FPGA video processing supports deinterlacing, up/down conversion and image controls.
  • Includes USB Type-C to Type-C, USB Type-C to Type-A and HDMI cables.

Warranty

3-year warranty

Product specs Download
Assembly guide Download
Magewell I/O (Capture) USB Capture HDMI 4K Pro
$1,231.19
$1,231.19

Technical details

4Kp60 HDMI Capture with USB 3.2

The Magewell USB Capture HDMI 4K Pro is a one-channel HDMI capture device for recording, streaming and other video workflows. It supports capture up to 4096×2160 at 60fps with 4:4:4 colour fidelity when connected to a host with USB 3.2 Gen 2x2 connectivity.

With HDMI loop-through, embedded HDMI audio support and a 3.5mm audio input and headphone output, the device brings video capture and monitoring together in a compact interface. Driver-free setup and broad software compatibility make it suitable for live production, presentations, conferencing and other professional applications.

High-Resolution HDMI Capture

When connected to a host with USB 3.2 Gen 2x2 connectivity, USB Capture HDMI 4K Pro can capture HDMI signals up to 4096×2160 at 60fps with 4:4:4 chroma fidelity. Capture performance depends on the USB connection and operating system; lower-bandwidth connections support different resolutions, frame rates and colour formats.

For compatible software, the device can also capture 10-bit HDR sources through the Magewell SDK. HDR capture requires software that directly supports this device feature.

Loop-Through and Audio Connections

The HDMI loop-through sends the input signal to a monitor or projector while the device captures it over USB, without requiring a separate splitter. Embedded HDMI audio is supported alongside a 3.5mm audio input and stereo headphone output.

These connections allow the device to fit into workflows that need local video monitoring and audio capture alongside computer-based production or streaming.

Flexible Computer Compatibility

USB Capture HDMI 4K Pro offers driver-free setup, automatic input format detection and UVC compatibility for use with a wide range of software. It supports Windows, macOS, Linux and Chrome OS.

The device can also connect to lower-performance USB interfaces, although available capture formats depend on the host computer's USB connectivity and operating system.

  • One-channel HDMI video capture.
  • Capture up to 4096×2160 at 60fps with 4:4:4 colour fidelity when connected to a compatible 20Gbps USB host.
  • USB 3.2 Gen 2x2 Type-C host interface with transfer rates up to 20Gbps.
  • HDMI loop-through for sending the source signal to a monitor or projector.
  • Supports embedded HDMI audio.
  • 3.5mm audio input and stereo headphone output.
  • Supports 10-bit HDR source capture through software that directly supports the feature via the Magewell SDK.
  • Compatible with lower-performance USB interfaces, with capture capabilities dependent on host connectivity and operating system.
  • Driver-free setup with automatic input signal format detection.
  • UVC compatibility for use with a wide range of video software.
  • Compatible with Windows, macOS, Linux and Chrome OS.
  • Built-in FPGA video processing supports deinterlacing, up/down conversion and image controls.
  • Includes USB Type-C to Type-C, USB Type-C to Type-A and HDMI cables.
SpecificationDetail
Product typeOne-channel HDMI capture device
Maximum capture resolution and frame rateUp to 4096×2160 at 60fps with 4:4:4 chroma fidelity on a compatible USB 3.2 Gen 2x2 host
Video inputHDMI
Video loop-throughHDMI
Audio supportEmbedded HDMI audio; 3.5mm audio input and stereo headphone output
Host interfaceUSB 3.2 Gen 2x2 Type-C, up to 20Gbps
HDR capture10-bit HDR source capture through compatible software using the Magewell SDK
Video processingFPGA-based deinterlacing, up/down conversion and image controls
Software compatibilityUVC-compatible software; Windows, macOS, Linux and Chrome OS
Included cablesUSB 3.2 Type-C to Type-C, USB 3.2 Type-C to Type-A and HDMI
SKU321500000

Compatibility

  • Capture up to 4096×2160 at 60fps with 4:4:4 colour fidelity when connected to a compatible 20Gbps USB host.
  • USB 3.2 Gen 2x2 Type-C host interface with transfer rates up to 20Gbps.
  • HDMI loop-through for sending the source signal to a monitor or projector.
  • Compatible with lower-performance USB interfaces, with capture capabilities dependent on host connectivity and operating system.
  • UVC compatibility for use with a wide range of video software.
  • Compatible with Windows, macOS, Linux and Chrome OS.

Frequently Asked Questions

What does the USB Capture HDMI 4K Pro do?

The Magewell USB Capture HDMI 4K Pro is a one-channel HDMI capture device for recording, streaming and other video workflows. It supports capture up to 4096×2160 at 60fps with 4:4:4 colour fidelity when connected to a host with USB 3.2 Gen 2x2 connectivity.

What are the main features of the USB Capture HDMI 4K Pro?

One-channel HDMI video capture. Capture up to 4096×2160 at 60fps with 4:4:4 colour fidelity when connected to a compatible 20Gbps USB host. USB 3.2 Gen 2x2 Type-C host interface with transfer rates up to 20Gbps.

What is the USB Capture HDMI 4K Pro compatible with?

Capture up to 4096×2160 at 60fps with 4:4:4 colour fidelity when connected to a compatible 20Gbps USB host. USB 3.2 Gen 2x2 Type-C host interface with transfer rates up to 20Gbps. HDMI loop-through for sending the source signal to a monitor or projector. Compatible with lower-performance USB interfaces, with capture capabilities dependent on host connectivity and operating system.

What connections or installation requirements does the USB Capture HDMI 4K Pro have?

Capture up to 4096×2160 at 60fps with 4:4:4 colour fidelity when connected to a compatible 20Gbps USB host. USB 3.2 Gen 2x2 Type-C host interface with transfer rates up to 20Gbps. 3.5mm audio input and stereo headphone output.

What capabilities or limits should I check before choosing the USB Capture HDMI 4K Pro?

Capture up to 4096×2160 at 60fps with 4:4:4 colour fidelity when connected to a compatible 20Gbps USB host. USB 3.2 Gen 2x2 Type-C host interface with transfer rates up to 20Gbps. Compatible with lower-performance USB interfaces, with capture capabilities dependent on host connectivity and operating system.

What warranty applies to the USB Capture HDMI 4K Pro?

3-year limited manufacturer warranty.
