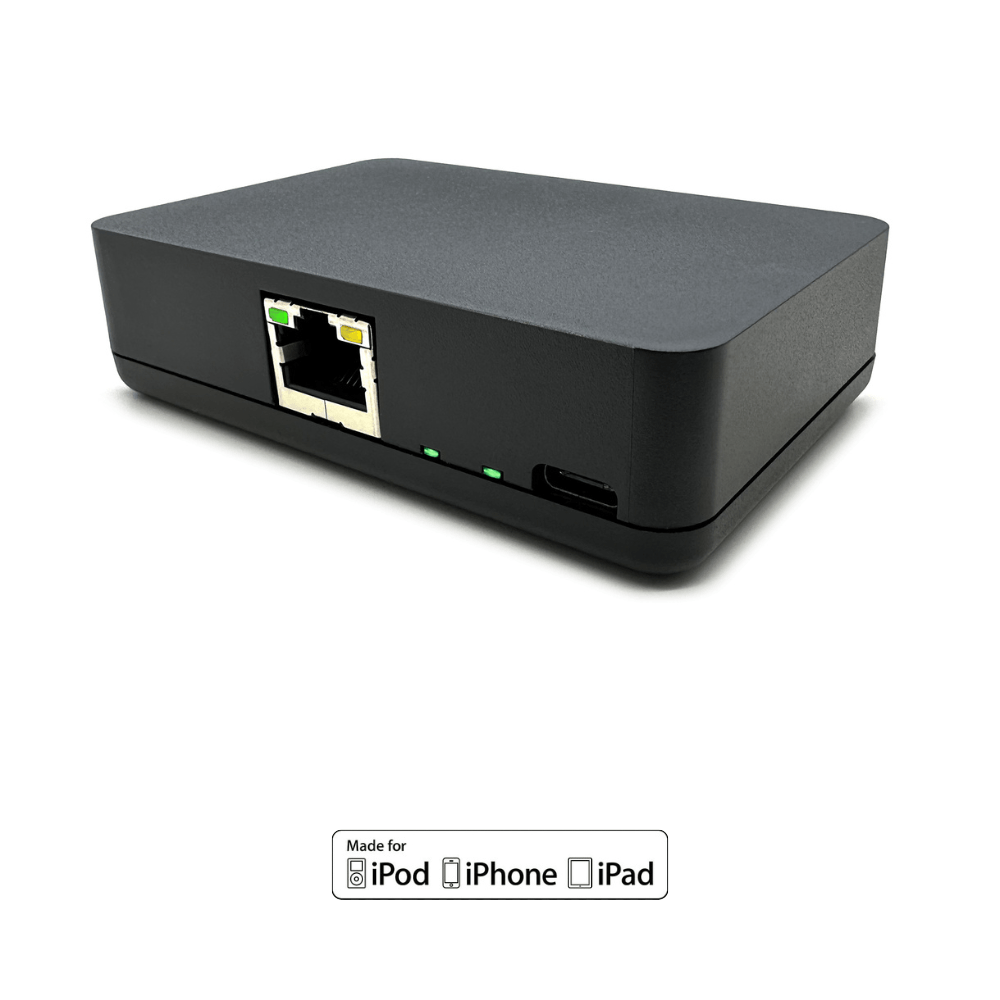

A PoE adaptor designed specifically for iPads using the USB-Connector. Allowing the new generation of iPads to get power of ethernet, charging the iPad while transmitting data making set up a breeze.
Specifications
- PoE+ adaptors require PoE+ (802.3at) or PoE++ (802.3bt) power from switches since they need minimum 30W
- iOS Compatibility: Compatible with all iOS devices featuring a USB-C connector, requires iOS 16.5 or later
- USB Connection to iPad: Provides 3A 5V power as per Apple specifications,

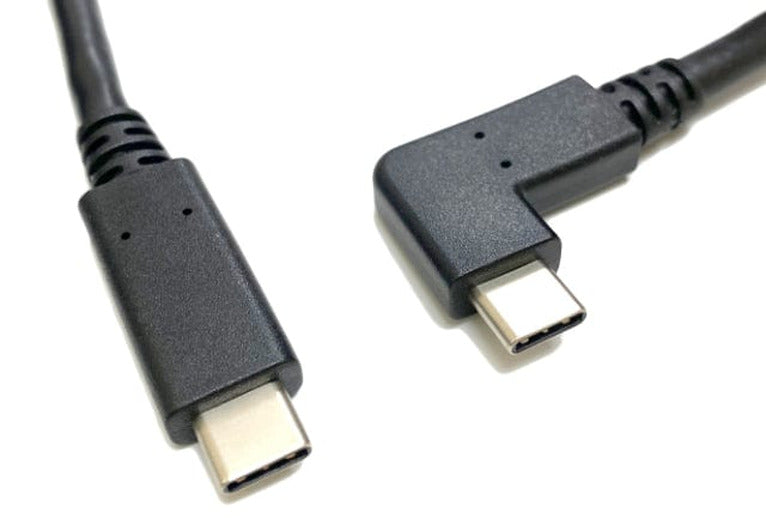

- Connector: USB-C. Use Redpark USB-C cable or Apple USB-IF certified USB-C cable
- Environmental: Temperature Range: 0C 55C
- Dimensions: 3.50 x 2.35 x .95
- Ethernet: 10/100/1000, RJ45 Auto MDX connector, delivering speeds of up to 900Mbps
Redpark – Simple PoE Power for Tablet Stands
Redpark PoE adapters provide reliable power and data to your tablet stands over a single Ethernet cable, so there’s no need for on-site electrical work. Perfect for fast, professional installations.

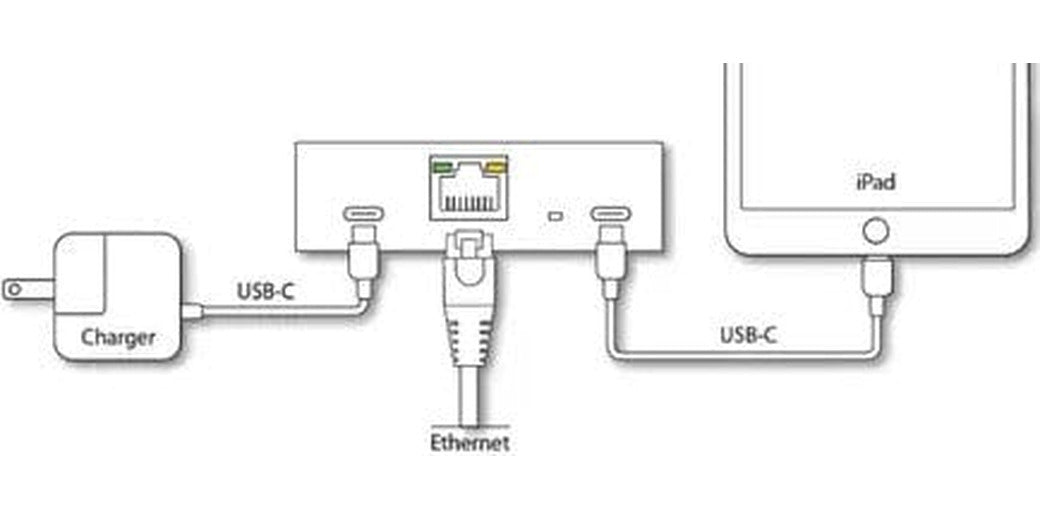

- Single Ethernet cable carries both data and power to the iPad via PoE+ (802.3at)
- Gigabit Ethernet with bandwidth up to 900Mbps with a USB 3 USB-C cable, or up to 350Mbps with a USB 2 USB-C cable
- Provides 3A (5V) in line with Apple specifications, enough to fully charge or power any USB-C iPad or iPhone
- Instantly recognised as a network connection, no app required to configure
- Configure via the Settings app: Ethernet appears between Wi-Fi and Bluetooth
- Supports DHCP and static IP addressing
- Each unit has a unique MAC address programmed at manufacture
- Power, link status, and network activity LEDs
- Does not draw power from the iPad, powered entirely by the PoE+ source
| Specification | Detail |
|---|---|
| Ethernet speed | 10/100/1000Mbps (Gigabit) |
| Bandwidth | Up to 900Mbps (USB 3 USB-C cable) / Up to 350Mbps (USB 2 USB-C cable) |
| PoE standard | PoE+ (802.3at) |
| PoE input requirement | 30W (PoE+ switch or injector required) |
| Power output | 3A @ 5V (Apple specification) |
| Connector (device side) | USB-C (via USB-C to USB-C cable) |
| Recommended cable | Cat5e, Cat6, or Cat6A |
| Dimensions | 3.50" × 2.35" × 0.95" |
| OS | iOS 16.5 or later |
| IP configuration | DHCP and static IP |
| USB standard | USB 3 (SuperSpeed) |
| Data path, USB 3 cable | SuperSpeed TX/RX pairs, up to 900Mbps |
| Data path, USB 2 cable | D+/D− pair, up to 350Mbps |
| Power delivery pins | VBUS (PoE+ sourced, converted to USB-PD) |
| Power negotiation | CC1/CC2 pins, locked to Apple 5V / 3A specification |
Available options
| Length | SKU |
|---|---|
| 400mm | HD-T310 |
| 950mm | HD-T311 |
| 3000mm | HD-T312 |
Compatibility
- USB-C iPad and iPhone (iOS 16.5 or later)
- Requires PoE+ switch or injector (802.3at, 30W)
Not compatible with 24V injectors. Does not support Lightning iPads. Android and Surface tablets not warranted.
Frequently Asked Questions
Which devices is this Redpark adapter for?
Which devices is this Redpark adapter for?
What PoE source does it need?
What PoE source does it need?
How much power does it supply?
How much power does it supply?
What network speed can I expect?
What network speed can I expect?
Does it work with Lightning iPads?
Does it work with Lightning iPads?
Is it compatible with 24V injectors?
Is it compatible with 24V injectors?
