By Magewell

Ultra Encode SDI

$1,111.40
$1,111.40
SKU: MG-531200000
Availability: In stock with supplier

Overview

The Magewell Ultra Encode SDI is a standalone encoder for streaming SDI video to online platforms and IP destinations. It combines SDI input and loop-through connections with configurable video and audio encoding and a range of streaming protocols.

Key features
  • One SD/HD/3G-SDI input and one SDI loop-through output.
  • Support for SD, HD and 3G-SDI standards and a range of common video formats and frame rates.
  • Support for 10-bit and 12-bit YCbCr video sampling.
  • Embedded SDI audio support for up to 16 channels.
  • 3.5 mm line input and line output for two-channel audio.
  • H.264 and H.265 (HEVC) video encoding.
  • Dual-stream encoding with configurable main and sub streams.
  • Video encoding bitrate of 16 Mbps.
  • Two-channel AAC audio encoding with selectable bitrates.
  • Streaming support for RTSP, RTMP/RTMPS, SRT, NDI HX2, HLS, TS over UDP, TS over RTP and TVU ISSP.
  • Support for up to six simultaneous sessions for RTMP/RTMPS, SRT Caller/Listener and TS over UDP/RTP, subject to protocol-specific limits.
  • Native streaming support for Twitch, YouTube and Facebook.
  • Gigabit Ethernet, dual-band Wi-Fi and support for an optional USB 4G/5G modem.
  • Web UI for preview, encoding settings, stream management and up to eight overlays per stream.
  • API support for third-party control systems and registration with Magewell Control Hub.

Warranty

2-year warranty

Product specs Download
Assembly guide Download

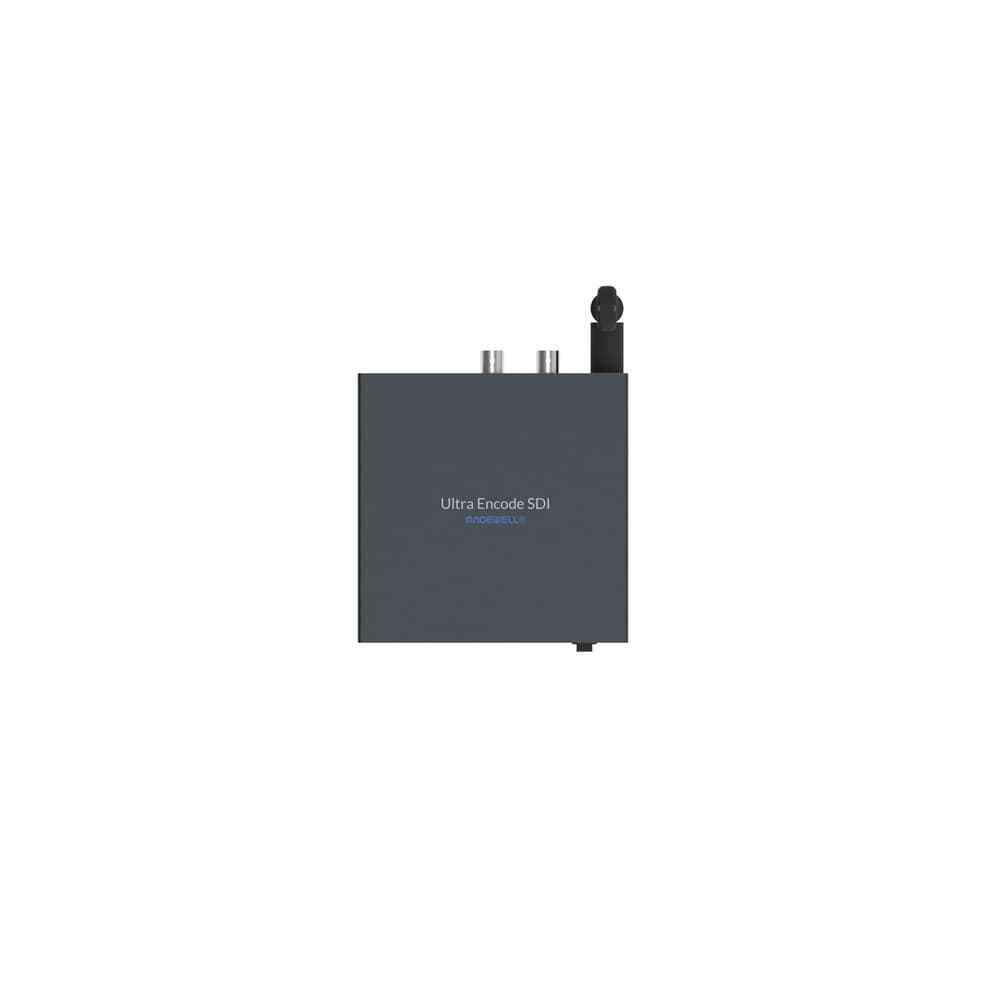

Magewell Stream (Encoding) Ultra Encode SDI
$1,111.40
$1,111.40

Technical details

Flexible SDI Encoding and Streaming

The Magewell Ultra Encode SDI is a standalone encoder for streaming SDI video to online platforms and IP destinations. It combines SDI input and loop-through connections with configurable video and audio encoding and a range of streaming protocols.

With support for SD, HD and 3G-SDI signals, dual-stream encoding and browser-based management, Ultra Encode SDI is suited to broadcast, live events, education and other applications that need to distribute professional video over IP.

Flexible Streaming Options

Ultra Encode SDI supports a range of streaming protocols, including RTMP/RTMPS, SRT, NDI HX2, HLS, RTSP and transport streams over UDP or RTP. It can also stream natively to Twitch, YouTube and Facebook.

Session capacity depends on the protocol. The device supports up to six sessions for several protocols, while HLS and RTSP are limited to one session and NDI HX2 to two sessions.

Configurable Encoding and Management

H.264 and H.265 encoding, dual-stream output and configurable video and audio settings allow the stream to be tailored to the destination. The browser-based Web UI provides access to device status, encoded-video preview and streaming controls.

Text, picture and clock overlays can be configured for each stream. APIs are also available for third-party control systems, and the encoder can be registered with Magewell Control Hub for centralised management.

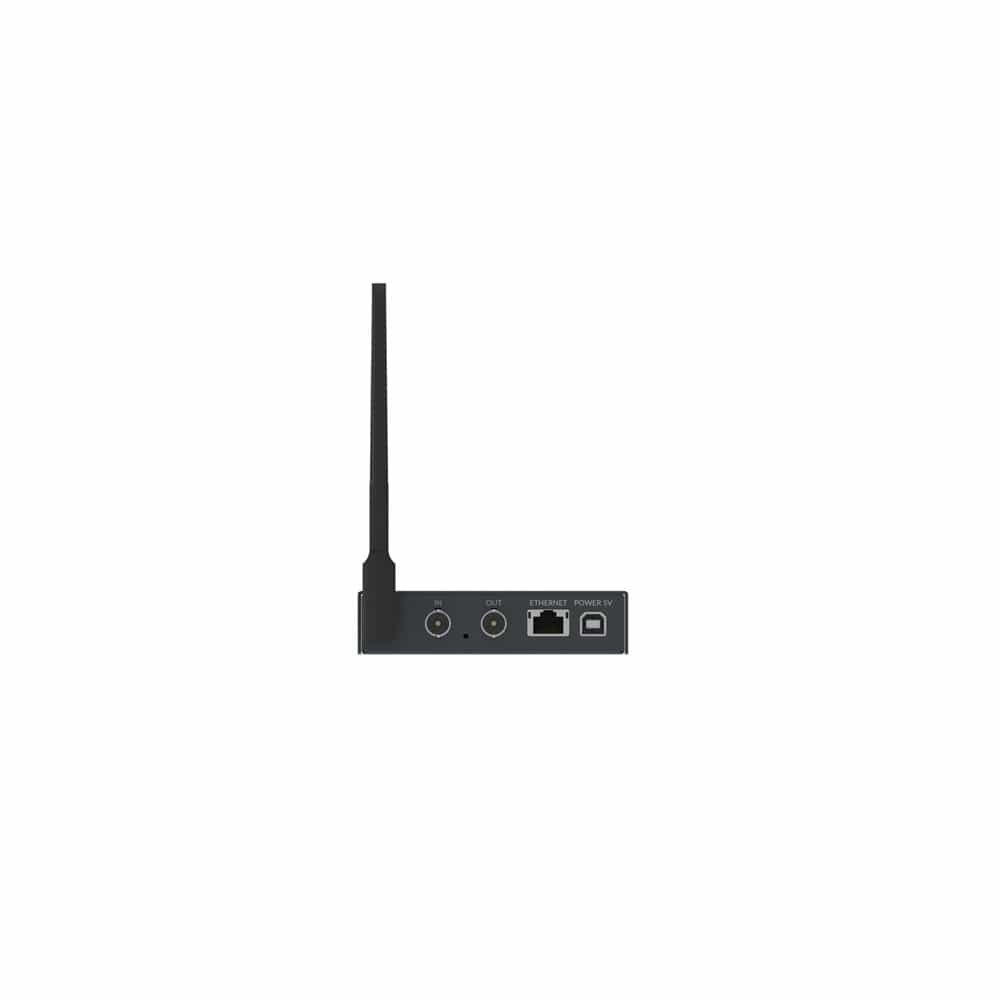

SDI Connections and Network Access

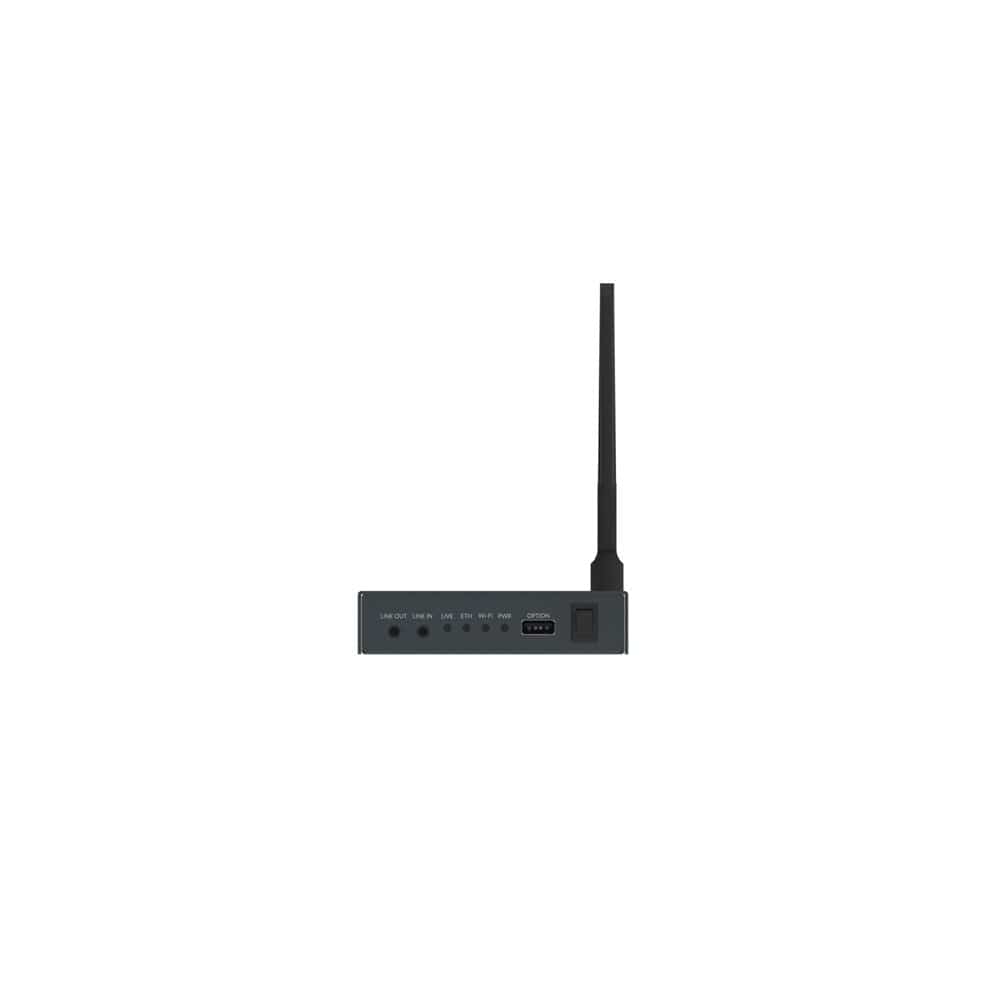

The SDI input supports SD, HD and 3G formats, with an SDI loop-through connection for passing the source signal on to other equipment. Audio can be embedded in the SDI signal or supplied through the 3.5 mm line input.

For network connectivity, Ultra Encode SDI provides Gigabit Ethernet and Wi-Fi in station or access point mode. A USB 4G/5G modem can also be used; the modem is not supplied.

  • One SD/HD/3G-SDI input and one SDI loop-through output.
  • Support for SD, HD and 3G-SDI standards and a range of common video formats and frame rates.
  • Support for 10-bit and 12-bit YCbCr video sampling.
  • Embedded SDI audio support for up to 16 channels.
  • 3.5 mm line input and line output for two-channel audio.
  • H.264 and H.265 (HEVC) video encoding.
  • Dual-stream encoding with configurable main and sub streams.
  • Video encoding bitrate of 16 Mbps.
  • Two-channel AAC audio encoding with selectable bitrates.
  • Streaming support for RTSP, RTMP/RTMPS, SRT, NDI HX2, HLS, TS over UDP, TS over RTP and TVU ISSP.
  • Support for up to six simultaneous sessions for RTMP/RTMPS, SRT Caller/Listener and TS over UDP/RTP, subject to protocol-specific limits.
  • Native streaming support for Twitch, YouTube and Facebook.
  • Gigabit Ethernet, dual-band Wi-Fi and support for an optional USB 4G/5G modem.
  • Web UI for preview, encoding settings, stream management and up to eight overlays per stream.
  • API support for third-party control systems and registration with Magewell Control Hub.
SpecificationDetail
Product typeStandalone SDI encoder and streaming device
SDI connections1 × input and 1 × loop-through; SD/HD/3G-SDI
Video samplingYCbCr 10-bit 4:2:2, 10-bit 4:4:4:4, 12-bit 4:2:2 and 12-bit 4:4:4
Audio input16-channel embedded SDI audio; 2-channel 3.5 mm line input
Audio output3.5 mm line output
Video encodingH.264 and H.265 (HEVC); dual-stream encoding
Video bitrate16 Mbps
Audio encoding2-channel AAC; selectable bitrates from 16 to 256 kbps
Streaming protocolsRTSP, RTMP/RTMPS, SRT Caller/Listener, NDI HX2, HLS, TS over UDP/RTP and TVU ISSP
Network connections1 × RJ45 Gigabit Ethernet; Wi-Fi 802.11 a/b/g/n/ac; USB modem support
Other connections1 × USB Type-A
Power supplyDC 5 V/3 A
Maximum power consumptionApproximately 7.16 W
Dimensions106.6 × 106.2 × 25 mm
Operating temperature0 to 40 °C

Compatibility

  • Streaming support for RTSP, RTMP/RTMPS, SRT, NDI HX2, HLS, TS over UDP, TS over RTP and TVU ISSP.
  • Support for up to six simultaneous sessions for RTMP/RTMPS, SRT Caller/Listener and TS over UDP/RTP, subject to protocol-specific limits.

Frequently Asked Questions

What does the Ultra Encode SDI do?

The Magewell Ultra Encode SDI is a standalone encoder for streaming SDI video to online platforms and IP destinations. It combines SDI input and loop-through connections with configurable video and audio encoding and a range of streaming protocols.

What are the main features of the Ultra Encode SDI?

One SD/HD/3G-SDI input and one SDI loop-through output. Support for SD, HD and 3G-SDI standards and a range of common video formats and frame rates. Support for 10-bit and 12-bit YCbCr video sampling.

What is the Ultra Encode SDI compatible with?

Streaming support for RTSP, RTMP/RTMPS, SRT, NDI HX2, HLS, TS over UDP, TS over RTP and TVU ISSP. Support for up to six simultaneous sessions for RTMP/RTMPS, SRT Caller/Listener and TS over UDP/RTP, subject to protocol-specific limits.

What connections or installation requirements does the Ultra Encode SDI have?

One SD/HD/3G-SDI input and one SDI loop-through output. 3.5 mm line input and line output for two-channel audio.

What capabilities or limits should I check before choosing the Ultra Encode SDI?

Embedded SDI audio support for up to 16 channels. Support for up to six simultaneous sessions for RTMP/RTMPS, SRT Caller/Listener and TS over UDP/RTP, subject to protocol-specific limits. Web UI for preview, encoding settings, stream management and up to eight overlays per stream.

What warranty applies to the Ultra Encode SDI?

2-year limited manufacturer warranty.
