Flexible 4K Streaming and Recording

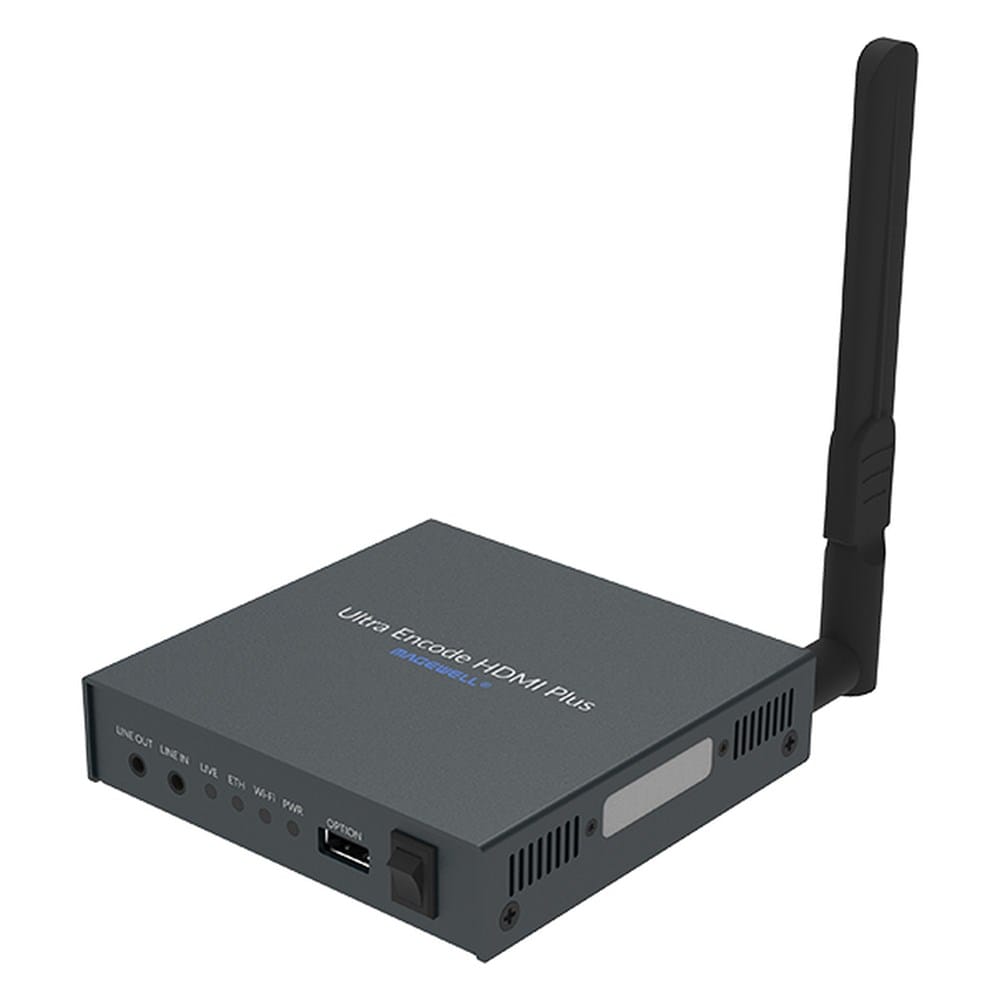

The Magewell Ultra Encode HDMI Plus is a versatile hardware encoder for streaming and recording HDMI video. It supports video input up to 4K at 30fps, with H.264 or H.265 encoding and simultaneous main and sub streams.
With support for popular streaming platforms and protocols, local and network recording, and browser-based control, Ultra Encode HDMI Plus can suit live events, corporate communications, education and other video production workflows. Its HDMI loop-through, line-level audio connections and network options make it straightforward to integrate with existing equipment.
Flexible Streaming Workflows
Ultra Encode HDMI Plus supports streaming to services including Twitch, YouTube, Facebook, WOWZA and ZIXI, as well as protocols such as RTMP/RTMPS, SRT, RTSP, HLS and NDI HX. Multiple destinations can be configured, with the available number of simultaneous sessions depending on the protocol used.
Dual-stream encoding lets you configure a main stream and a sub stream for different delivery needs. Encoding settings include video resolution, frame rate and bitrate, alongside audio stream and channel mapping.
Recording and Remote Management
Recordings can be saved to the encoder’s 128GB local storage, an external USB storage device or network-attached storage using NFS or CIFS. Files can be saved in MP4, MOV or TS format, with options including scheduled and loop recording.
The browser-based Web UI provides access to device status, video preview, encoding settings, streaming and recording controls, overlays and recorded files. The device also supports APIs for third-party control systems and registration with Magewell Control Hub.
- HDMI 1.4a and DVI-D video input support.
- Video input resolutions up to 4096 × 2160 at 30fps.
- H.264 and H.265 (HEVC) video encoding.
- Dual-stream encoding with configurable main and sub streams.
- Support for RTSP, RTMP/RTMPS, SRT, NDI HX2, NDI HX3, HLS and other streaming protocols.
- Streaming to up to six destinations simultaneously, subject to protocol and session limits.
- Support for up to eight audio streams and eight source channels.
- Recording to built-in 128GB storage, external USB storage or network-attached storage.
- Recording in MP4, MOV or TS formats.

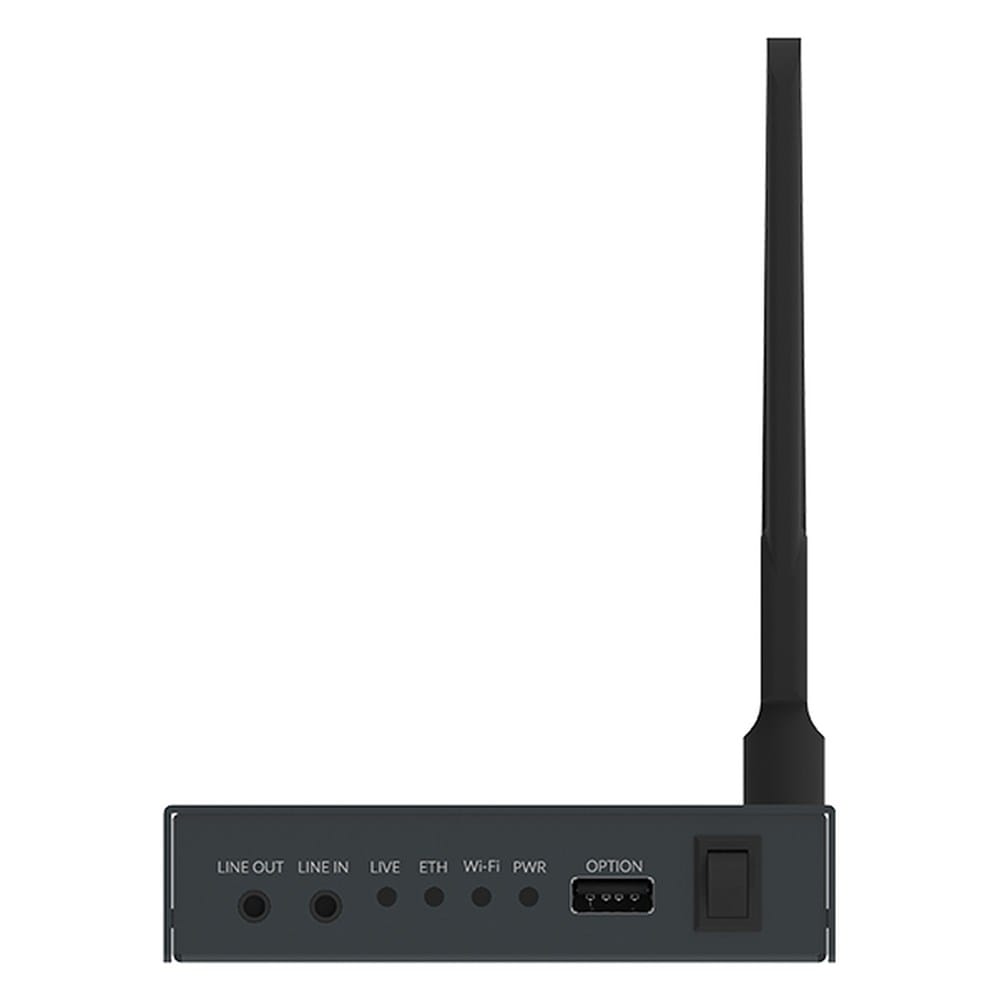

- HDMI loop-through output and 3.5mm line-level audio input and output.
- Web interface for configuration, stream management, recording and file access.
- Up to eight text, image or clock overlays for each stream.
- Gigabit Ethernet with IEEE 802.3af PoE support, plus Wi-Fi in station and access point modes.
- USB modem support for 4G or 5G connectivity; modem not supplied.
| Specification | Detail |
|---|---|
| Product type | HDMI streaming and recording encoder |
| Video input | 1 × HDMI; supports HDMI 1.4a and DVI-D |
| Maximum input resolution | 4096 × 2160 at 30fps |
| Video encoding | H.264 and H.265 (HEVC) |
| Encoding streams | Main stream and sub stream |
| Streaming protocols | RTSP, RTMP/RTMPS, SRT, NDI HX2/HX3, HLS, TS over UDP/RTP, TVU ISSP and ZIXI |
| Simultaneous streaming | Up to 6 destinations, subject to protocol and session limits |
| Audio input | 8-channel HDMI embedded audio; 2-channel 3.5mm line input |
| Audio encoding | Up to 8 audio streams and 8 source channels |
| Recording storage | 128GB local storage; external USB storage and NAS supported |
| Recording formats | MP4, MOV and TS |

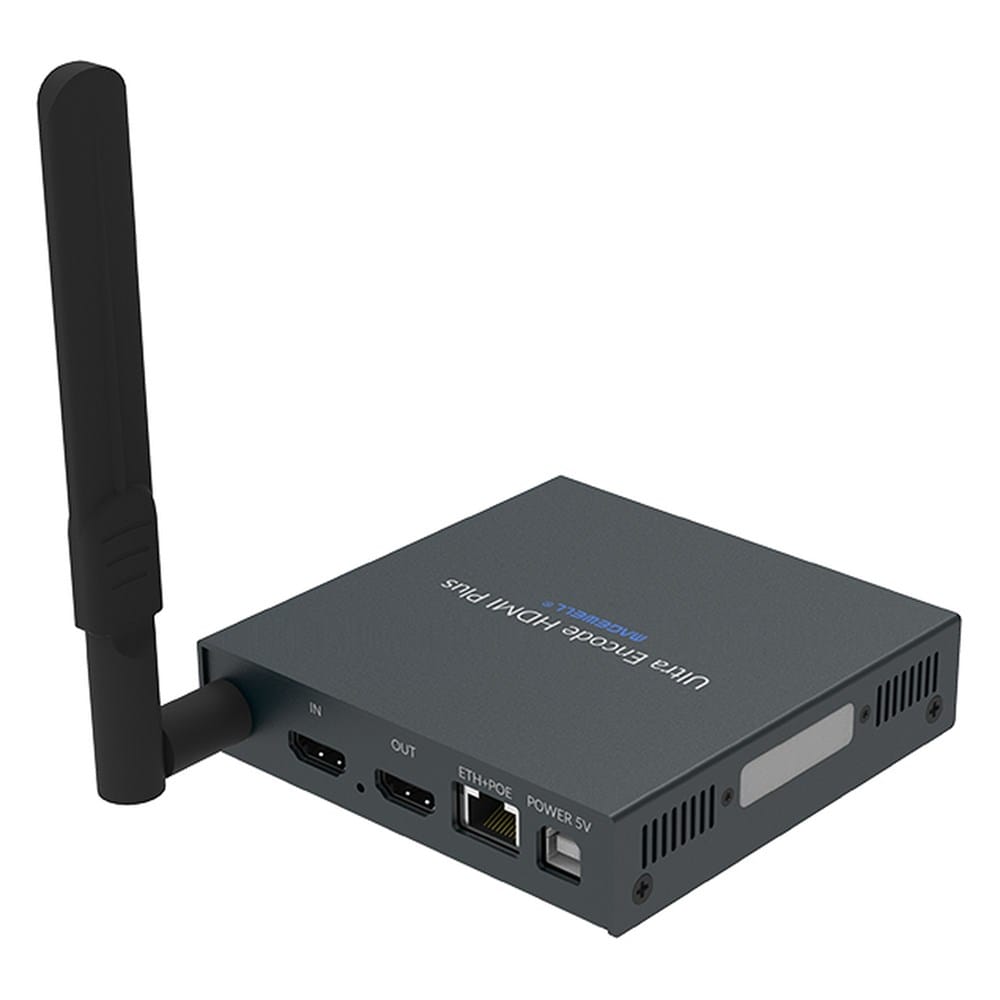

| Video outputs | 1 × HDMI loop-through |
| Audio connections | 1 × 3.5mm line in; 1 × 3.5mm line out |
| Network connectivity | 1 × Gigabit Ethernet with IEEE 802.3af PoE; Wi-Fi 802.11 a/b/g/n/ac |
| USB modem support | 4G/5G USB modem (not supplied) |
| Dimensions | 106.6 × 106.2 × 25mm |
| Power supply | DC 5V/3A |
| Maximum power consumption | 8.68W |
