By Magewell

Pro Convert HDMI 4K Plus Module

$2,178.07
$2,178.07
SKU: MG-B40110000
Availability: In stock with supplier

Overview

The Magewell Pro Convert HDMI 4K Plus Module converts a 4K HDMI input signal into high-bandwidth NDI, with HDMI loop-through for a local display or other equipment. Designed as a module for the Modator 2U, it supports up to 4Kp60 input and NDI encoding.

Key features
  • Converts HDMI input to high-bandwidth NDI.
  • HDMI 2.0 input and output ports for signal loop-through.
  • Supports input and loop-through signals up to 4096 Ɨ 2160 at 60fps, 4:4:4, 8-bit.
  • Encodes NDI output up to 4096 Ɨ 2160 at 60fps, 4:2:2, 8-bit.
  • Supports NDI encoding up to 1920 Ɨ 1080 at 240fps, 4:2:2, 8-bit.
  • Supports eight-channel HDMI-embedded audio and eight-channel NDI-embedded audio.
  • Supports RGB and YUV BT.601, BT.709 and BT.2020 signals.
  • Allows custom input EDID settings.
  • Supports NDI 6.2.
  • Provides a 1000Mbps Ethernet port and USB Type-C configuration port.
  • Supports hot-swappable connection to the Modator 2U.
  • Maximum power consumption of 7W.

Warranty

2-year warranty

Product specs Download
Assembly guide Download

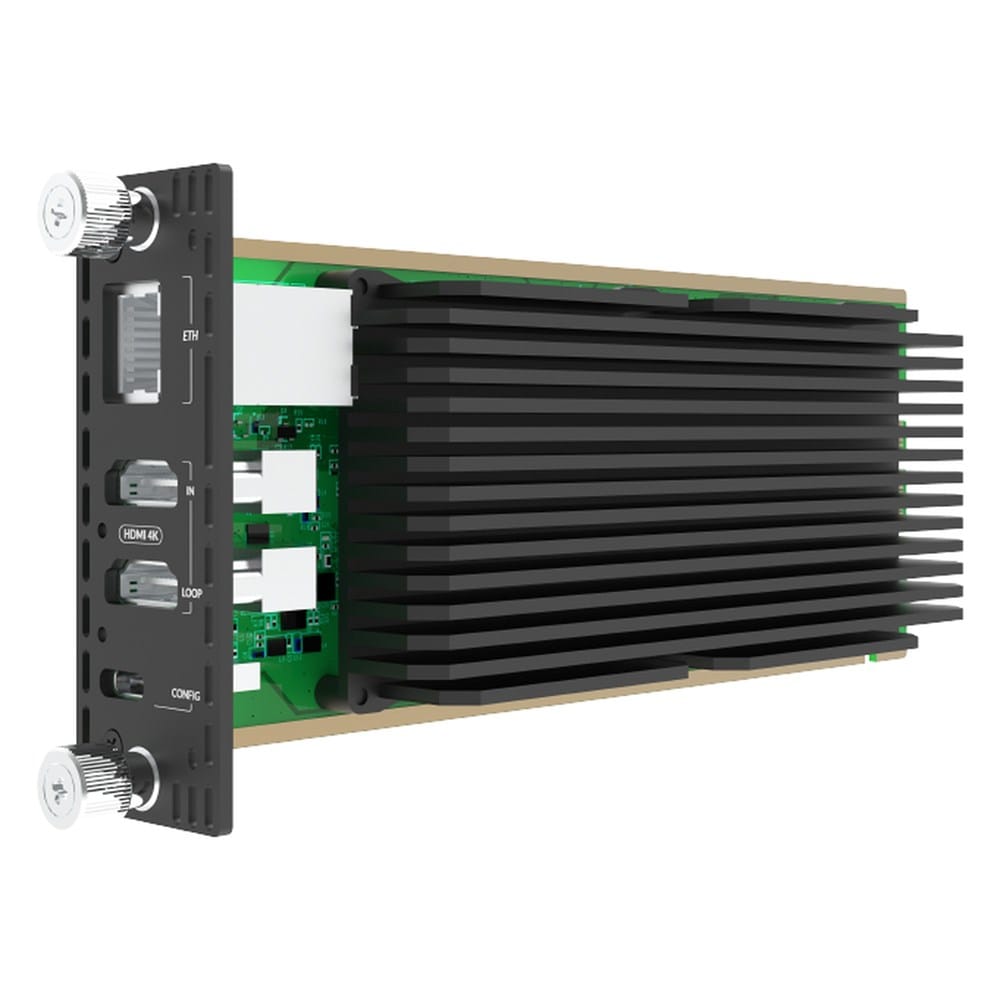

Magewell Convert Pro Convert HDMI 4K Plus Module
$2,178.07
$2,178.07

Technical details

4K HDMI to High-Bandwidth NDI

The Magewell Pro Convert HDMI 4K Plus Module converts a 4K HDMI input signal into high-bandwidth NDI, with HDMI loop-through for a local display or other equipment.

Designed as a module for the Modator 2U, it supports up to 4Kp60 input and NDI encoding. A Gigabit Ethernet port provides network connectivity, while USB-C supports configuration.

HDMI Input and Loop-Through

The HDMI 2.0 input accepts video signals in configurable formats, with support for custom EDID settings. The HDMI output provides loop-through, allowing the input signal to be passed to a connected display or other device.

Input and loop-through support signals up to 4096 Ɨ 2160 at 60fps in 4:4:4, 8-bit format.

High-Bandwidth NDI Encoding

The module encodes real-time NDI streams at up to 4096 Ɨ 2160 at 60fps or 1920 Ɨ 1080 at 240fps, both in 4:2:2, 8-bit format.

Output can match the input resolution or use a custom resolution, with frame-rate options including the original rate or one-half, one-third or one-quarter of the input frame rate.

Configuration and Management

Configuration and management are available through the web UI, which provides real-time information about the device and signals. Settings include deinterlacing, EDID, scaling, frame rate, aspect ratio and network connection.

The module can also be registered with Magewell Control Hub for remote centralised management and supports firmware updates and HTTP APIs.

  • Converts HDMI input to high-bandwidth NDI.
  • HDMI 2.0 input and output ports for signal loop-through.
  • Supports input and loop-through signals up to 4096 Ɨ 2160 at 60fps, 4:4:4, 8-bit.
  • Encodes NDI output up to 4096 Ɨ 2160 at 60fps, 4:2:2, 8-bit.
  • Supports NDI encoding up to 1920 Ɨ 1080 at 240fps, 4:2:2, 8-bit.
  • Supports eight-channel HDMI-embedded audio and eight-channel NDI-embedded audio.
  • Supports RGB and YUV BT.601, BT.709 and BT.2020 signals.
  • Allows custom input EDID settings.
  • Supports NDI 6.2.
  • Provides a 1000Mbps Ethernet port and USB Type-C configuration port.
  • Supports hot-swappable connection to the Modator 2U.
  • Maximum power consumption of 7W.
SpecificationDetail
Product typeHDMI to high-bandwidth NDI encoder module with loop-through
Module compatibilityModator 2U; hot-swappable module interface
HDMI input1 Ɨ HDMI 2.0
HDMI output1 Ɨ HDMI 2.0 loop-through
Maximum input and loop-through signal4096 Ɨ 2160 at 60fps, 4:4:4, 8-bit
Maximum NDI output4096 Ɨ 2160 at 60fps or 1920 Ɨ 1080 at 240fps, 4:2:2, 8-bit
NDI versionNDI 6.2
Audio8-channel HDMI-embedded audio and 8-channel NDI-embedded audio
Ethernet1 Ɨ RJ45 1000Mbps
Configuration port1 Ɨ USB Type-C
Power consumptionMaximum 7W
Dimensions184.4 Ɨ 30.0 Ɨ 81.5mm
WeightApproximately 295g
Operating temperature0 to 50Ā°C

Compatibility

  • Converts HDMI input to high-bandwidth NDI.
  • Encodes NDI output up to 4096 Ɨ 2160 at 60fps, 4:2:2, 8-bit.
  • Supports NDI encoding up to 1920 Ɨ 1080 at 240fps, 4:2:2, 8-bit.
  • Supports eight-channel HDMI-embedded audio and eight-channel NDI-embedded audio.
  • Supports NDI 6.2.

Frequently Asked Questions

What does the Pro Convert HDMI 4K Plus Module do?

The Magewell Pro Convert HDMI 4K Plus Module converts a 4K HDMI input signal into high-bandwidth NDI, with HDMI loop-through for a local display or other equipment. Designed as a module for the Modator 2U, it supports up to 4Kp60 input and NDI encoding.

What are the main features of the Pro Convert HDMI 4K Plus Module?

Converts HDMI input to high-bandwidth NDI. HDMI 2.0 input and output ports for signal loop-through. Supports input and loop-through signals up to 4096 Ɨ 2160 at 60fps, 4:4:4, 8-bit.

What is the Pro Convert HDMI 4K Plus Module compatible with?

Converts HDMI input to high-bandwidth NDI. Encodes NDI output up to 4096 Ɨ 2160 at 60fps, 4:2:2, 8-bit. Supports NDI encoding up to 1920 Ɨ 1080 at 240fps, 4:2:2, 8-bit. Supports eight-channel HDMI-embedded audio and eight-channel NDI-embedded audio.

What connections or installation requirements does the Pro Convert HDMI 4K Plus Module have?

Converts HDMI input to high-bandwidth NDI. HDMI 2.0 input and output ports for signal loop-through. Supports input and loop-through signals up to 4096 Ɨ 2160 at 60fps, 4:4:4, 8-bit.

What capabilities or limits should I check before choosing the Pro Convert HDMI 4K Plus Module?

Supports input and loop-through signals up to 4096 Ɨ 2160 at 60fps, 4:4:4, 8-bit. Encodes NDI output up to 4096 Ɨ 2160 at 60fps, 4:2:2, 8-bit. Supports NDI encoding up to 1920 Ɨ 1080 at 240fps, 4:2:2, 8-bit.

What warranty applies to the Pro Convert HDMI 4K Plus Module?

2-year limited manufacturer warranty.
