By Magewell

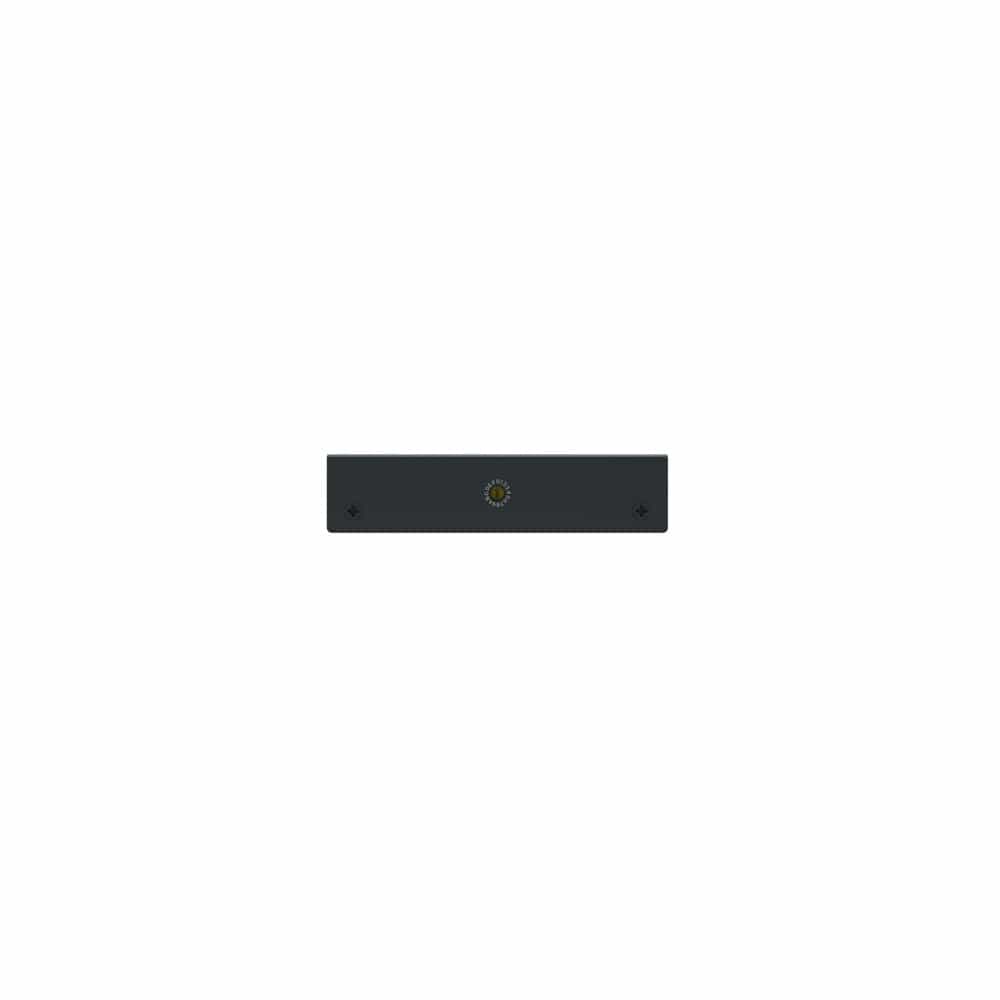

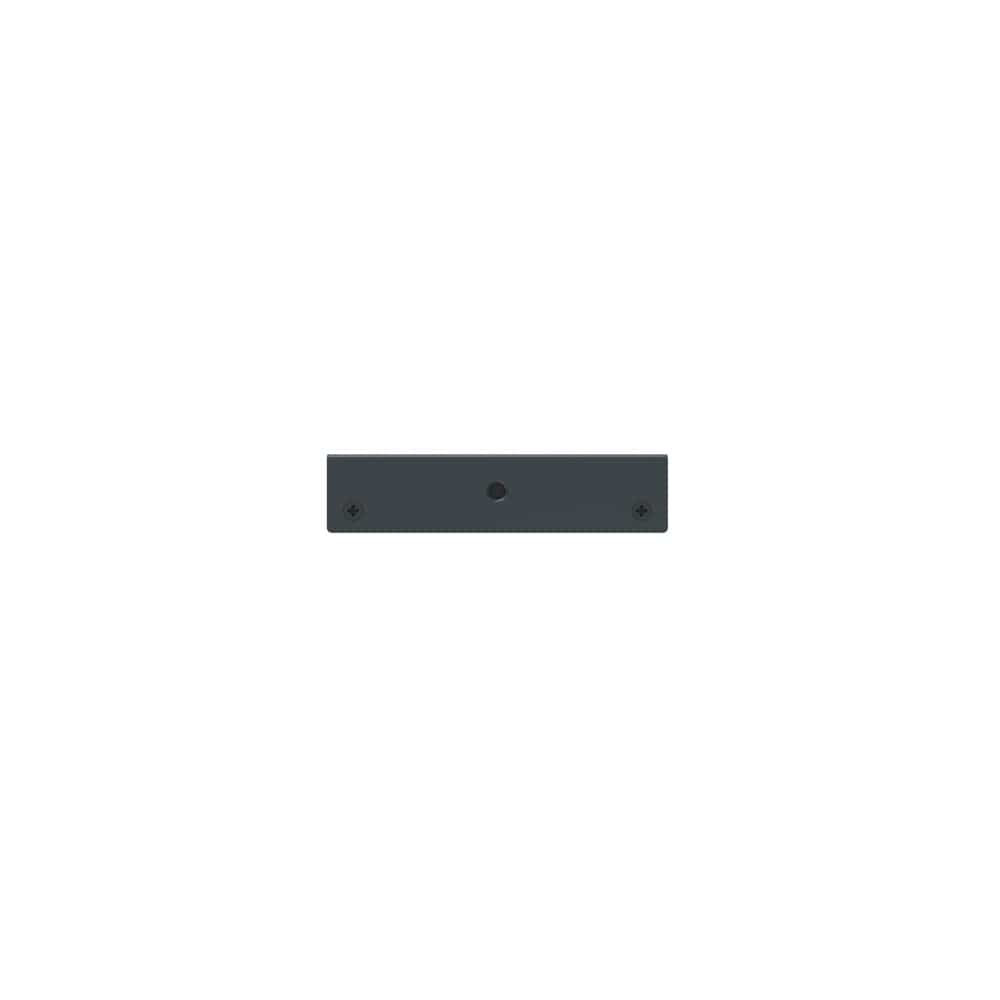

Pro Convert Audio DX - Bi-Directional Dante Audio Encoder/Decoder with Analog Stereo Input/Output

$1,116.42
$1,116.42
SKU: MG-642600000
Availability: In stock with supplier

Overview

The Magewell Pro Convert Audio DX is a bi-directional IP audio encoder/decoder that bridges analog stereo audio with Dante, NDI and SRT networks at the same time. It accepts 3.5mm unbalanced and 4.4mm balanced analog audio plus USB Audio Class input, and can simultaneously receive and transmit 8-channel 24-bit Dante flows alongside SRT/NDI/RTSP/RTMP(S)/TS network audio streams, with PoE-powered single-cable deployment.

Key features
  • Bi-Directional Conversion: Encodes and decodes audio in both directions between analog and IP at the same time.
  • Dante® Networking: Supports 8-channel 24-bit Dante® flows over unicast or multicast, with Dante Controller integration.
  • Flexible IP Streaming: Sends and receives 4-channel streams via SRT, NDI®, RTSP, RTMP(S), TS-over-UDP and TS-over-RTP.

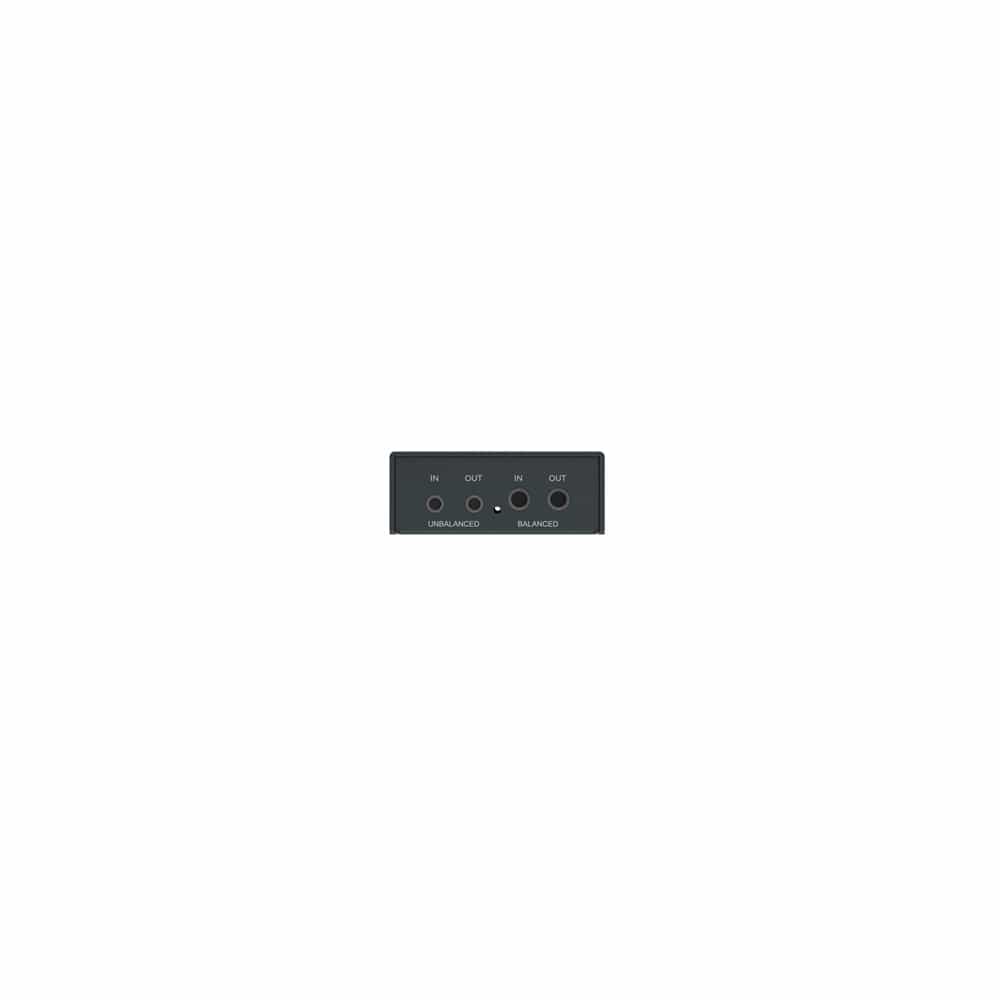

  • Versatile Analog I/O: 3.5mm unbalanced, 4.4mm balanced and 4-channel USB Audio Class inputs and outputs.
  • Virtual Audio Matrix: Routes and mixes any analog or IP input to any output for total signal flexibility.
  • PoE Powered: Single-cable deployment with Power over Ethernet for clean, simple installation.

Warranty

2-year warranty

Magewell Convert Pro Convert Audio DX - Bi-Directional Dante Audio Encoder/Decoder with Analog Stereo Input/Output
$1,116.42
$1,116.42

Technical details

The Magewell Pro Convert Audio DX is a bi-directional, Dante®-enabled IP audio encoder and decoder built for professional AV, broadcast and installed-sound workflows. It bridges analog audio with Dante®, NDI® and SRT so you can move high-quality sound between traditional gear and modern IP networks.

Ideal for houses of worship, live events, ProAV installs and remote production, the Pro Convert Audio DX connects analog and IP audio worlds in one compact device.

  • Bi-Directional Conversion: Encodes and decodes audio in both directions between analog and IP at the same time.
  • Dante® Networking: Supports 8-channel 24-bit Dante® flows over unicast or multicast, with Dante Controller integration.
  • Flexible IP Streaming: Sends and receives 4-channel streams via SRT, NDI®, RTSP, RTMP(S), TS-over-UDP and TS-over-RTP.
  • Versatile Analog I/O: 3.5mm unbalanced, 4.4mm balanced and 4-channel USB Audio Class inputs and outputs.
  • Virtual Audio Matrix: Routes and mixes any analog or IP input to any output for total signal flexibility.
  • PoE Powered: Single-cable deployment with Power over Ethernet for clean, simple installation.

Frequently Asked Questions

Can I route and mix inputs to different outputs?

Yes. The virtual audio matrix routes and mixes any analog or IP input to any output.

How many Dante channels does it support?

It supports 8-channel, 24-bit Dante flows over unicast or multicast, with Dante Controller integration.

Which streaming protocols are supported?

It sends and receives 4-channel streams via SRT, NDI, RTSP, RTMP(S), TS-over-UDP and TS-over-RTP.

What analog and USB connections does it have?

It offers 3.5 mm unbalanced and 4.4 mm balanced analog I/O, plus 4-channel USB Audio Class input and output.

Is it PoE powered?

Yes. It supports Power over Ethernet for single-cable deployment.

Should I choose this or the Pro Convert AES67?

Choose the Audio DX for Dante networks. For AES67 networks, the Pro Convert AES67 bridges analog audio with AES67, NDI and SRT.
