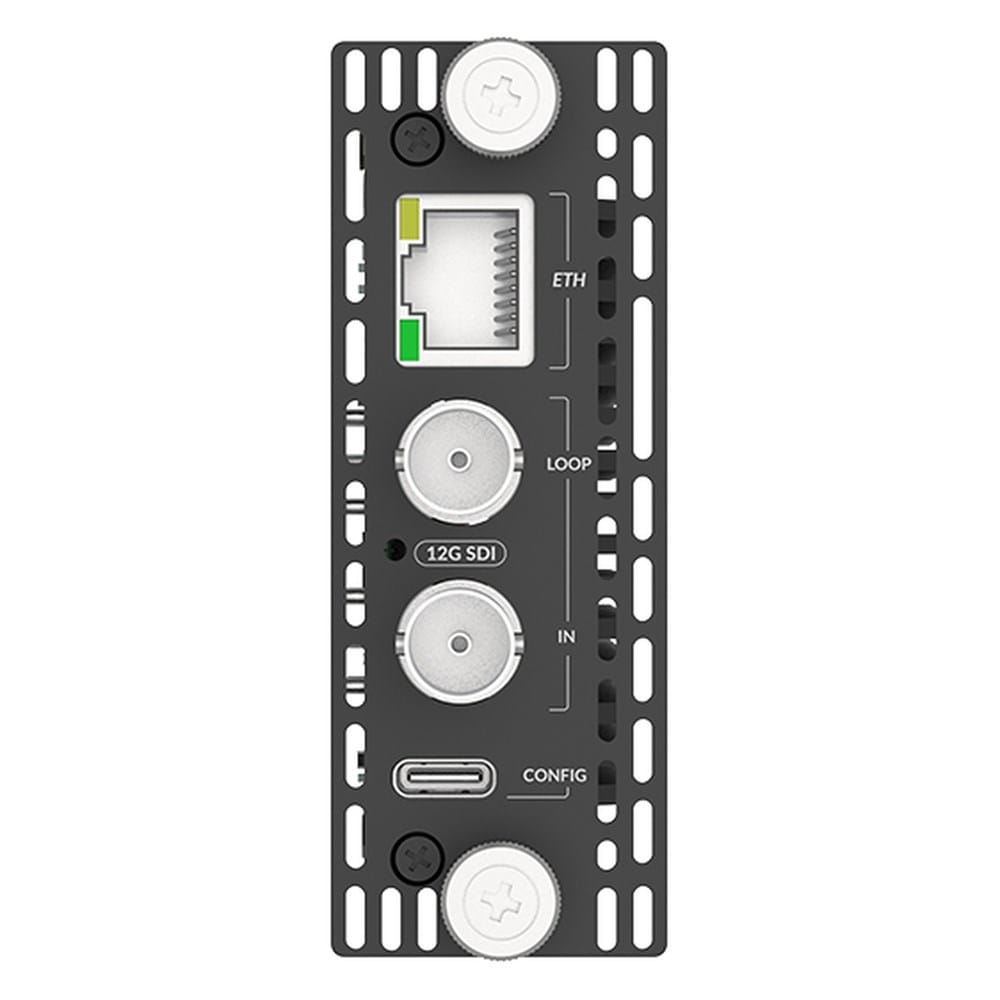

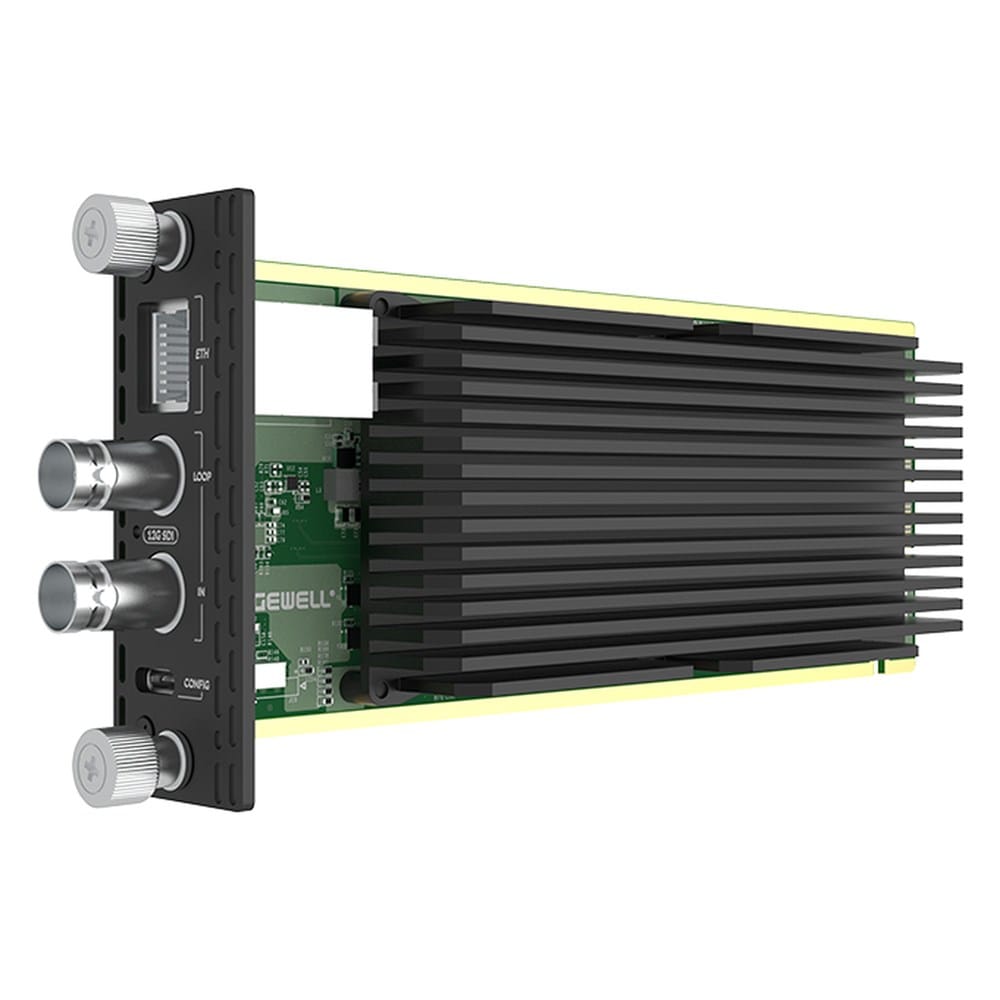

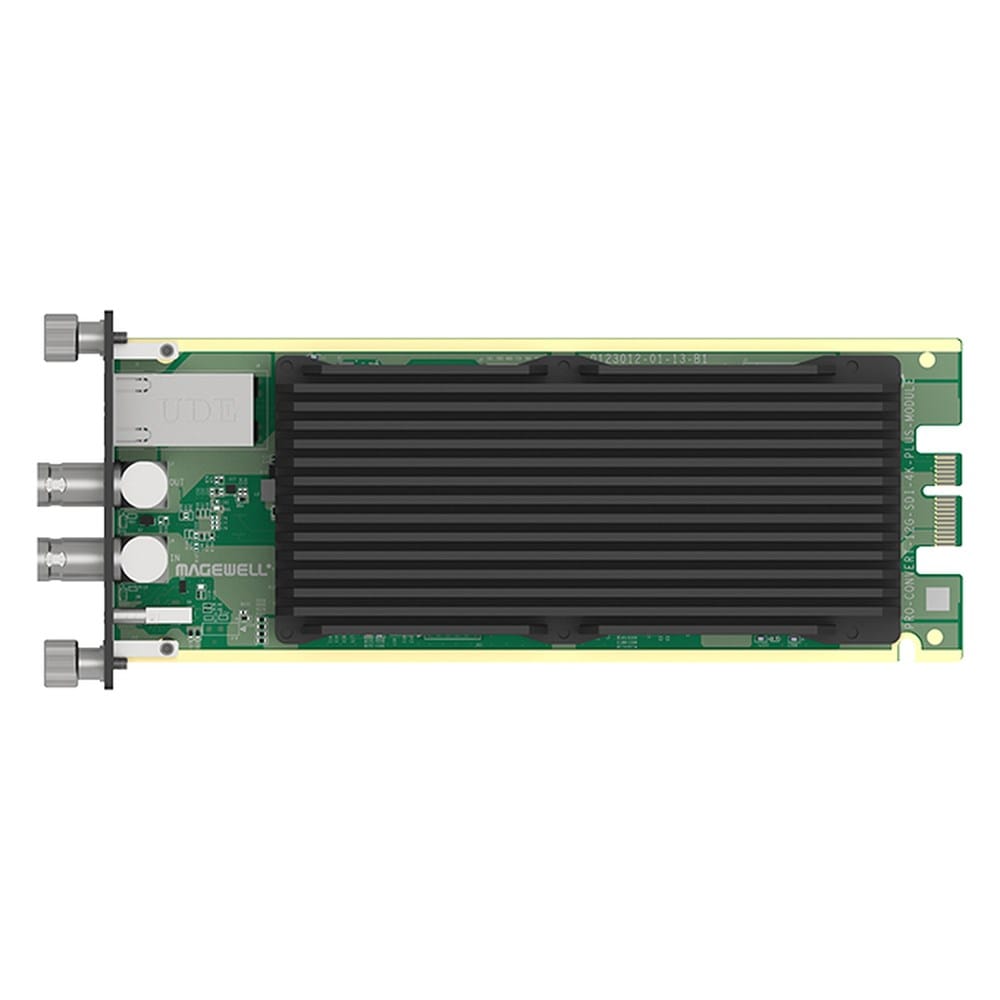

Pro Convert 12G SDI 4K Plus Module

$2,178.07
$2,178.07
SKU: MG-B40910000
Availability: In stock with supplier

Overview

The Magewell Pro Convert 12G SDI 4K Plus Module is a video encoder module for converting one channel of SDI video into a Full NDI stream. Designed for use in a Modator rackmount chassis, it supports input video up to 4K at 60 frames per second.

Key features
  • Module for use in a Modator rackmount chassis.
  • Converts one channel of SDI video to Full NDI.
  • Supports video input up to 4096 Ɨ 2160 at 60 frames per second.
  • Accepts SD, HD, 3G, 6G and 12G-SDI signals.
  • SDI loop-through lets the input signal feed additional equipment.
  • Supports up to 16 channels of embedded SDI audio.
  • Encodes NDI High Bandwidth video up to 4096 Ɨ 2160 at 60 frames per second.
  • NDI video encoding supports 4:2:2 8-bit colour.
  • Provides low-latency conversion for live production workflows.
  • Automatically detects the input video format.
  • DHCP-based network configuration helps simplify setup.
  • Q-SYS plugin support enables control and monitoring.

Warranty

2-year warranty

Product specs Download
Assembly guide Download
Magewell Convert Pro Convert 12G SDI 4K Plus Module
$2,178.07
$2,178.07

Technical details

12G-SDI to Full NDI for 4K Production

The Magewell Pro Convert 12G SDI 4K Plus Module is a video encoder module for converting one channel of SDI video into a Full NDI stream. Designed for use in a Modator rackmount chassis, it supports input video up to 4K at 60 frames per second.

With SDI loop-through, the module can send the input signal to other equipment while converting it for an NDI-based IP workflow. Support for embedded audio, automatic input format detection and DHCP-based network configuration helps simplify integration.

Connect SDI Sources to NDI Workflows

The module converts a single-link SDI source into a Full NDI stream, allowing compatible video equipment to be used in NDI-enabled IP media networks.

Support for SD, HD, 3G, 6G and 12G-SDI formats lets the encoder work with a range of SDI sources, including signals up to 4Kp60.

Maintain Existing SDI Connections

An SDI loop-through connection passes the input signal on to additional displays or equipment while the module converts the same source to NDI.

Up to 16 channels of embedded SDI audio are supported, helping carry audio with the video into the IP workflow.

  • Module for use in a Modator rackmount chassis.
  • Converts one channel of SDI video to Full NDI.
  • Supports video input up to 4096 Ɨ 2160 at 60 frames per second.
  • Accepts SD, HD, 3G, 6G and 12G-SDI signals.
  • SDI loop-through lets the input signal feed additional equipment.
  • Supports up to 16 channels of embedded SDI audio.
  • Encodes NDI High Bandwidth video up to 4096 Ɨ 2160 at 60 frames per second.
  • NDI video encoding supports 4:2:2 8-bit colour.
  • Provides low-latency conversion for live production workflows.
  • Automatically detects the input video format.
  • DHCP-based network configuration helps simplify setup.
  • Q-SYS plugin support enables control and monitoring.
SpecificationDetail
Product typeSDI-to-Full-NDI encoder module for Modator rackmount chassis
Video channels1
SDI inputSD, HD, 3G, 6G and 12G-SDI
SDI loop-through1
Maximum video input4096 Ɨ 2160 at 60 frames per second
Embedded audio inputUp to 16 channels
NDI encodingNDI High Bandwidth, up to 4096 Ɨ 2160 at 60 frames per second, 4:2:2 8-bit
ConfigurationAutomatic input format detection and DHCP-based network configuration
Control and monitoringQ-SYS plugin support

Compatibility

  • Converts one channel of SDI video to Full NDI.
  • Encodes NDI High Bandwidth video up to 4096 Ɨ 2160 at 60 frames per second.
  • NDI video encoding supports 4:2:2 8-bit colour.

Frequently Asked Questions

What does the Pro Convert 12G SDI 4K Plus Module do?

The Magewell Pro Convert 12G SDI 4K Plus Module is a video encoder module for converting one channel of SDI video into a Full NDI stream. Designed for use in a Modator rackmount chassis, it supports input video up to 4K at 60 frames per second.

What are the main features of the Pro Convert 12G SDI 4K Plus Module?

Module for use in a Modator rackmount chassis. Converts one channel of SDI video to Full NDI. Supports video input up to 4096 Ɨ 2160 at 60 frames per second.

What is the Pro Convert 12G SDI 4K Plus Module compatible with?

Converts one channel of SDI video to Full NDI. Encodes NDI High Bandwidth video up to 4096 Ɨ 2160 at 60 frames per second. NDI video encoding supports 4:2:2 8-bit colour.

What connections or installation requirements does the Pro Convert 12G SDI 4K Plus Module have?

Module for use in a Modator rackmount chassis. Supports video input up to 4096 Ɨ 2160 at 60 frames per second. SDI loop-through lets the input signal feed additional equipment.

What capabilities or limits should I check before choosing the Pro Convert 12G SDI 4K Plus Module?

Supports video input up to 4096 Ɨ 2160 at 60 frames per second. Supports up to 16 channels of embedded SDI audio. Encodes NDI High Bandwidth video up to 4096 Ɨ 2160 at 60 frames per second.

What warranty applies to the Pro Convert 12G SDI 4K Plus Module?

2-year limited manufacturer warranty.
