Compact HDMI Capture for Professional Applications
The Magewell Pro Capture Mini HDMI (no heat sink) is a single-channel HD capture card for capturing HDMI video and embedded audio in a compact Mini PCIe format. Its 30 × 51 mm design makes it suitable for systems where space is limited.
With an HDMI 1.4a input, DVI 1.0 support and video processing features including deinterlacing, cropping and colour adjustment, the card supports professional capture workflows across Windows, Linux and macOS.
Flexible Video Capture
The card accepts HDMI and DVI video and supports input resolutions up to 2048 × 2160 pixels. It can capture at resolutions up to 2048 × 2160, with the maximum frame rate depending on PCIe bandwidth and the onboard video processing hardware.
Video processing features include cropping, scaling, deinterlacing, frame-rate conversion and aspect-ratio conversion, with options for colour format and quantisation range.
Audio and Workflow Integration
Embedded HDMI audio can be captured alongside video, with support for up to eight audio channels. The card also supports extraction of video timing information, 3D format information and Sony/Canon DSLR time code.
Magewell lists Windows, Linux and macOS support, along with SDKs and compatibility with a range of capture and streaming software.
Compact Mini PCIe Design
Measuring 30 × 51 mm, the Mini PCIe card is designed for integration into space-constrained systems. The included SHD-to-HDMI Type A breakout provides a full-size HDMI connection.

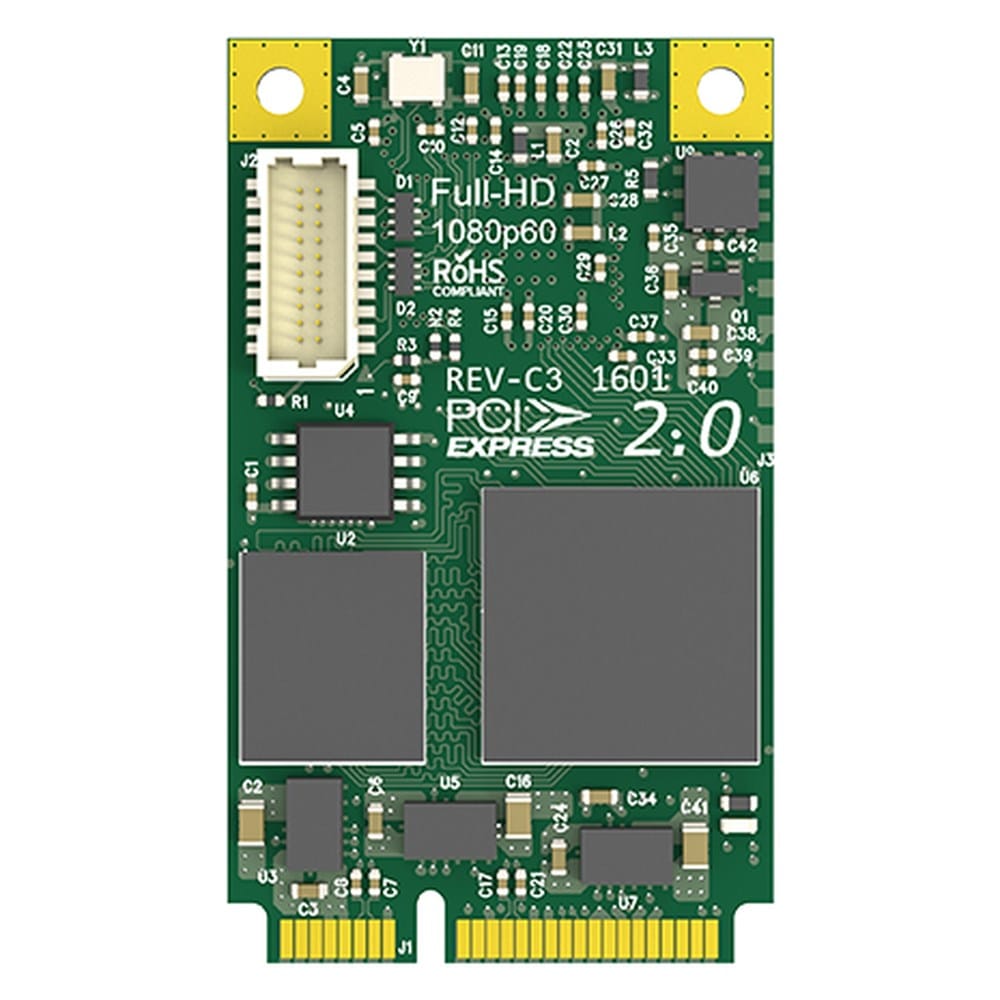

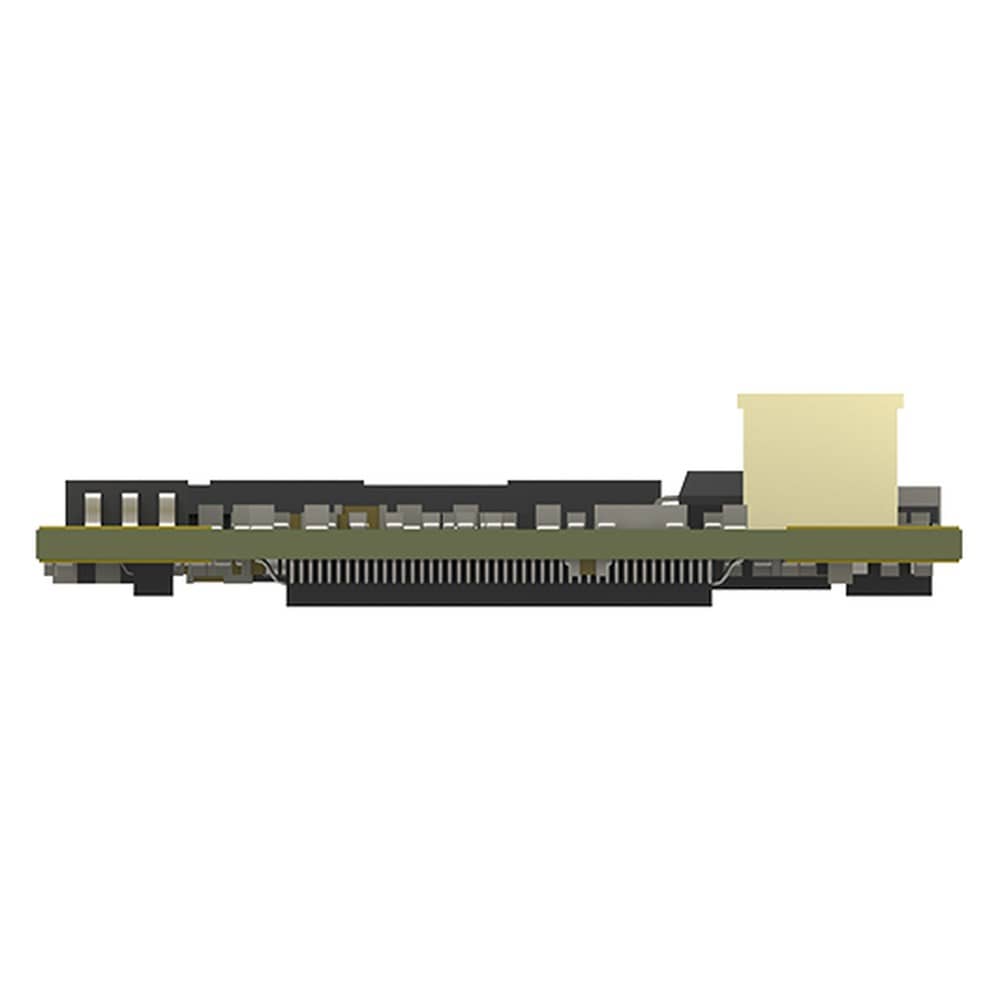

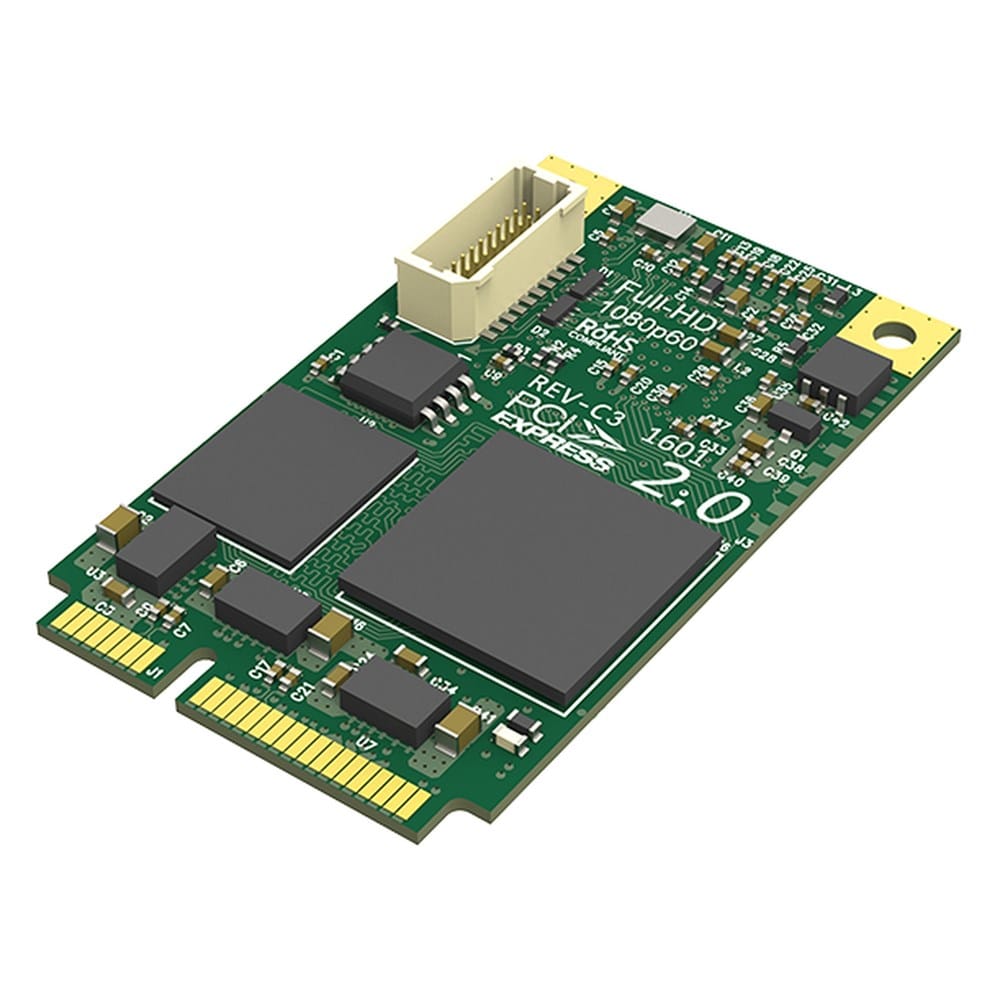

This is the no-heat-sink variant of the Pro Capture Mini HDMI. Check the product SKU and images to confirm the card configuration.
- Single-channel HDMI video capture.
- Mini PCIe Gen 2 x1 host interface.
- Compact 30 × 51 mm card format.
- HDMI 1.4a and DVI 1.0 input support.
- Input video resolutions up to 2048 × 2160 pixels.
- Capture resolutions up to 2048 × 2160 pixels.
- Capture frame rates up to 144 fps, subject to PCIe bandwidth and onboard processing limits.
- Full 10-bit video processing.
- Support for 8-, 10- and 12-bit input colour depths.
- HDMI embedded audio support for up to eight channels.
- Video cropping, scaling, deinterlacing and aspect-ratio conversion.
- Automatic input signal format detection and colour space conversion.
- Support for HDMI 3D formats and Sony/Canon DSLR time code extraction.
- Includes an SHD-to-HDMI Type A breakout cable.
| Specification | Detail |
|---|---|
| Product type | Single-channel HD capture card |
| Variant | No heat sink |
| Input interface | HDMI 1.4a; DVI 1.0 |
| Host interface | Mini PCIe Gen 2 x1 |
| Input resolution | Up to 2048 × 2160 pixels |
| Capture resolution | Up to 2048 × 2160 pixels |
| Maximum capture frame rate | Up to 144 fps, subject to PCIe bandwidth and onboard processing limits |
| Audio | Up to 8-channel embedded HDMI audio |
| Video processing | Full 10-bit processing; cropping, scaling, deinterlacing, frame-rate and aspect-ratio conversion |
| Card dimensions | 30 × 51 mm |
| Included accessory | SHD-to-HDMI Type A breakout cable |
| Operating systems | Windows, Linux and macOS |
Compatibility
- Mini PCIe Gen 2 x1 host interface.
- Capture frame rates up to 144 fps, subject to PCIe bandwidth and onboard processing limits.
