By Magewell

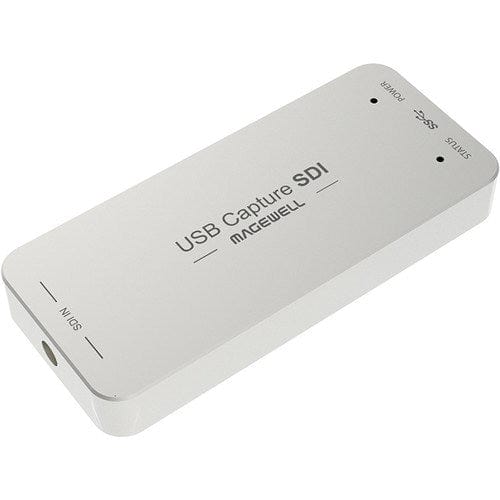

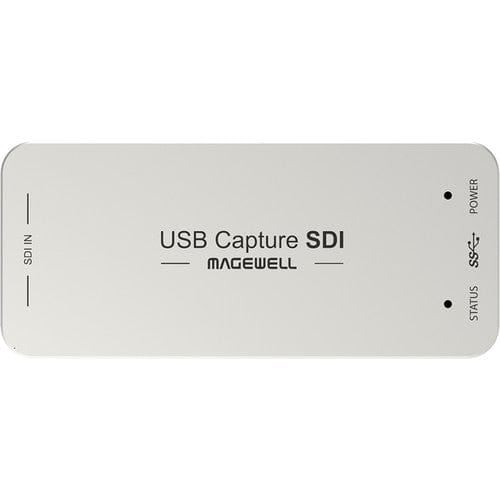

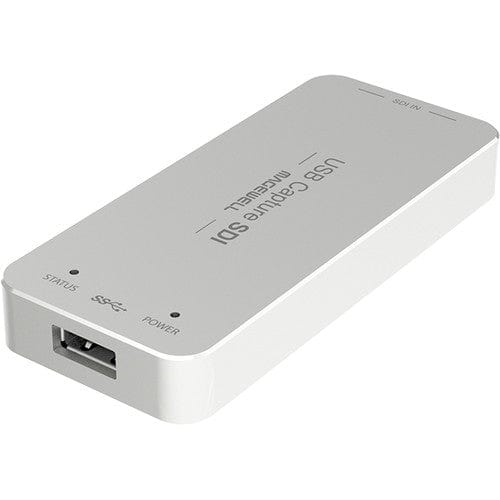

Magewell USB Capture SDI Gen 2

$612.61
$612.61
SKU: MG-32070
Availability: Low stock: 4 left

Free standard shipping on all orders over $250

Overview

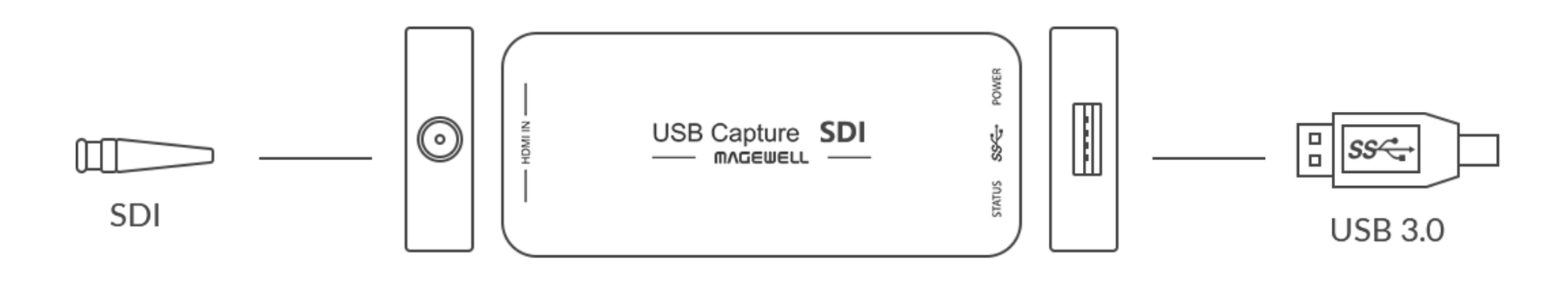

The Magewell USB Capture SDI Gen 2 is a compact USB 3.0 capture device that accepts one SD/HD/3G-SDI input with embedded audio and delivers it to a computer for video conferencing, streaming, or production workflows. Supporting SDI signals transmitted up to 150 metres for 3G-SDI, it is well suited to broadcast and live event environments where SDI cabling infrastructure is already in place.

Key features

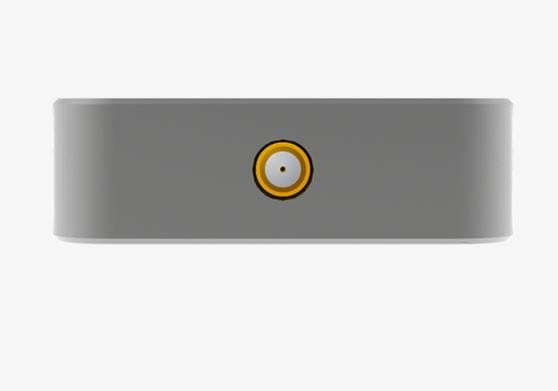

  • Single SD/HD/3G-SDI BNC input, up to 2048×1080 at 60fps
  • SDI cable runs up to 150m supported for 3G-SDI signals

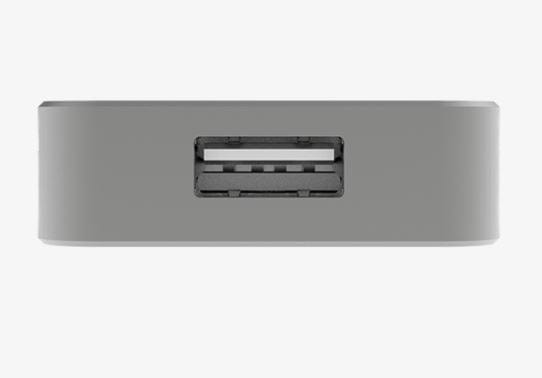

  • USB 3.0 bus-powered, no external power adapter required
  • Up to 8-channel embedded audio capture
  • Driver-free UVC/UAC compatibility with Windows, Linux, macOS, and Chrome OS
  • Compatible with Zoom Rooms, Microsoft Teams, OBS Studio, XSplit, VLC, QuickTime, and all DirectShow/V4L2/AVCaptureSession software
  • Auto detection of input signal format
  • Rated for continuous 24/7 operation
  • Barco ClickShare Alliance certified

Warranty

2-year warranty

Product specs Download
Assembly guide Download

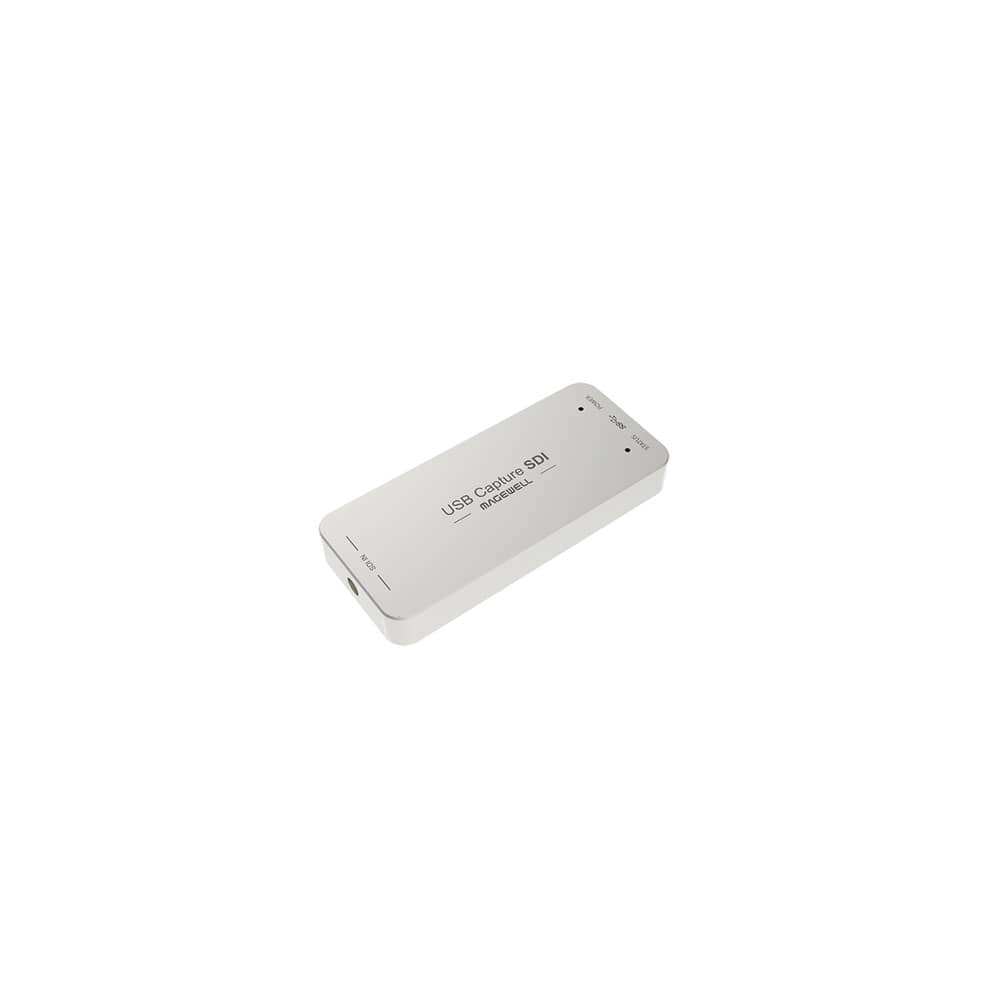

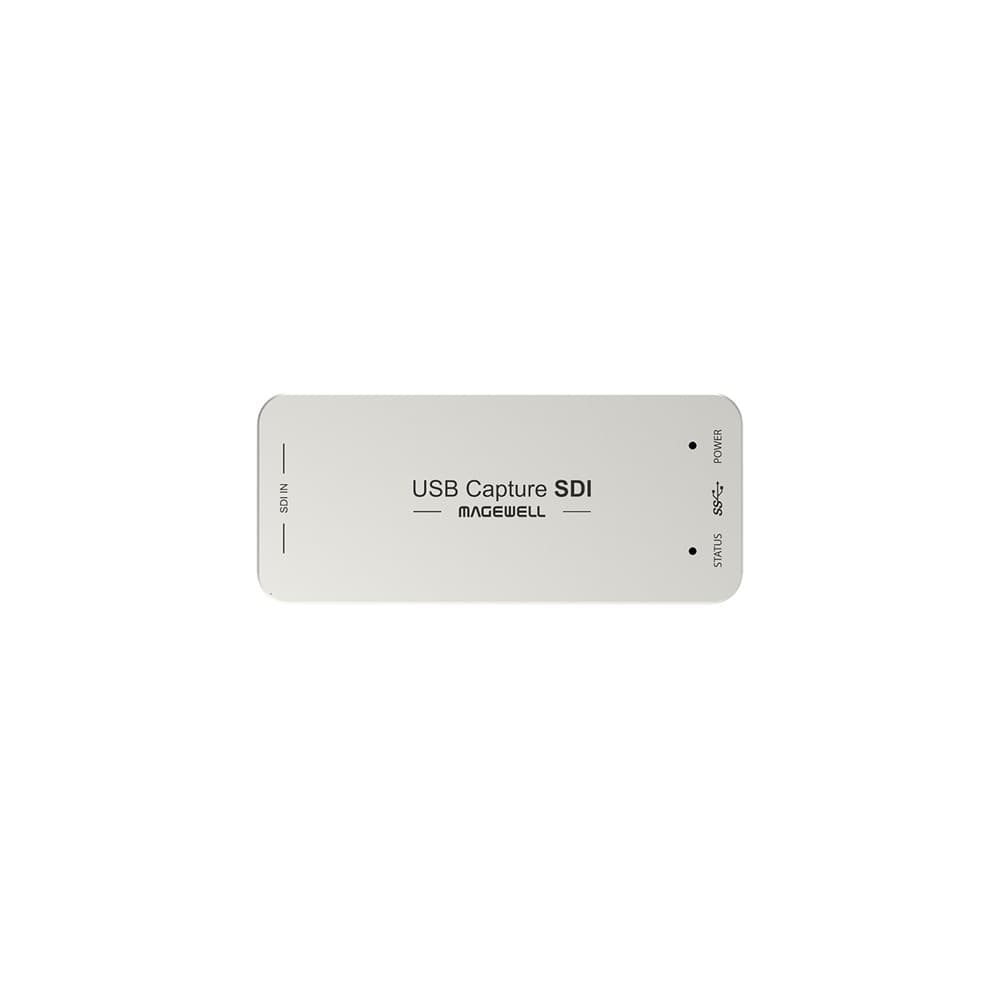

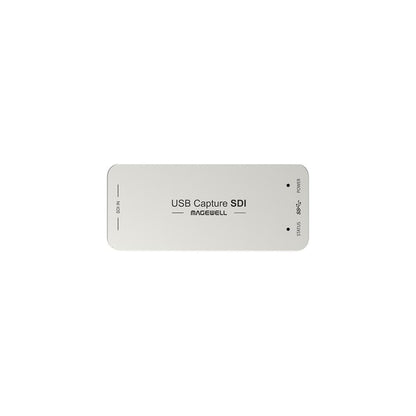

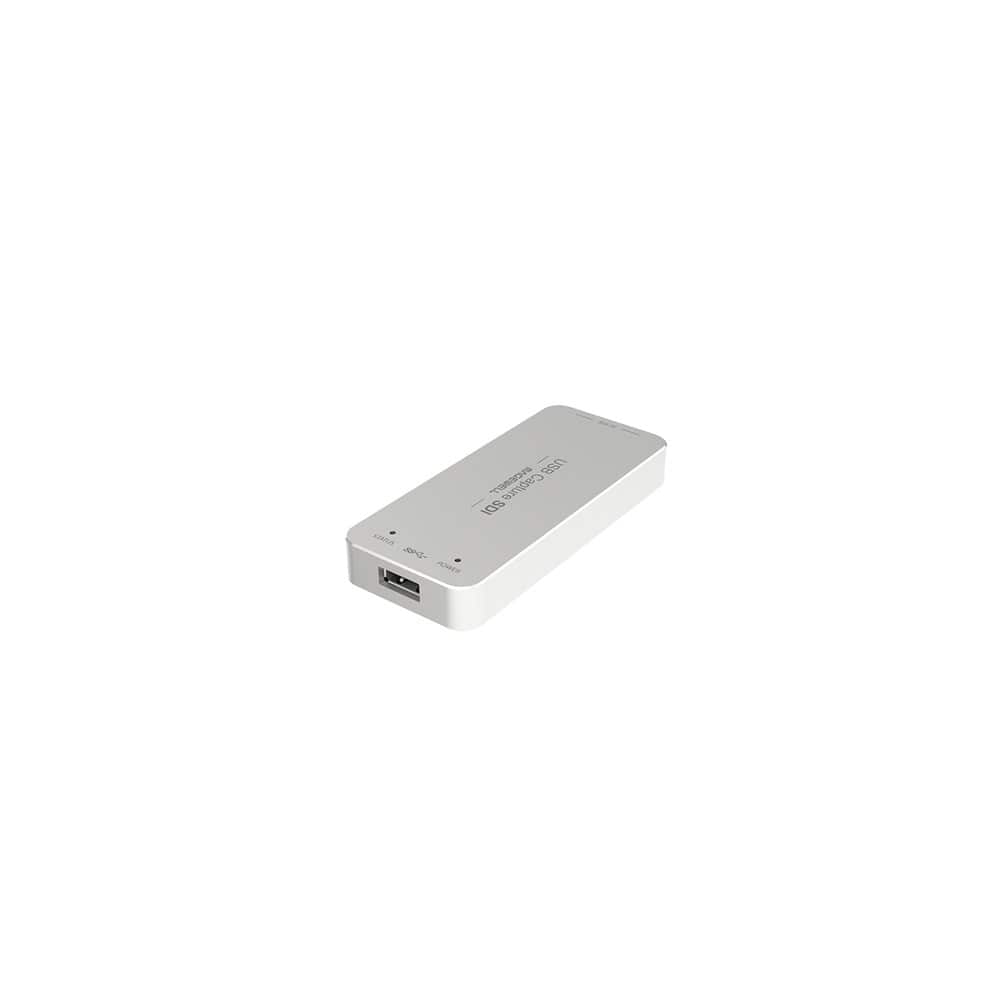

Magewell USB Capture SDI Gen 2 (MG-32070), main product image
$612.61
$612.61

Technical details

One channel HD capture device.

Captures SD/HD/3G/2K SDI + embedded audio.

  • Single SD/HD/3G-SDI BNC input, up to 2048×1080 at 60fps
  • SDI cable runs up to 150m supported for 3G-SDI signals
  • USB 3.0 bus-powered, no external power adapter required
  • Up to 8-channel embedded audio capture
  • Driver-free UVC/UAC compatibility with Windows, Linux, macOS, and Chrome OS
  • Compatible with Zoom Rooms, Microsoft Teams, OBS Studio, XSplit, VLC, QuickTime, and all DirectShow/V4L2/AVCaptureSession software
  • Auto detection of input signal format
  • Rated for continuous 24/7 operation
  • Barco ClickShare Alliance certified
SpecificationDetail
Part Number32070
Video Input1 × SD/HD/3G-SDI (BNC)
SDI StandardsSD (ST 259), HD (ST 292), 3Ga/3Gb-DL/3Gb-DS (ST 425)
Max Input Resolution2048×1080 at 60fps
AudioUp to 8-channel embedded audio
USB StandardUSB 3.0 (USB 2.0 compatible)
Max Power~2.5W (0.5A at 5V)
Dimensions92.2 × 40.2 × 12.3mm
OS SupportWindows 10/11/Server; Linux (kernel 2.6.35+); macOS 10.9+; Chrome OS
Operating Temp0-50°C

Compatibility

  • Zoom Rooms, Microsoft Teams, Skype for Business, Google Meet, OBS Studio, XSplit, VLC, QuickTime Player, and any DirectShow (Windows), V4L2 (Linux), or AVCaptureSession (macOS) compatible software.

Frequently Asked Questions

Which SDI signals does the USB Capture SDI Gen 2 accept?

It accepts one SD, HD or 3G-SDI input with embedded audio, at up to 2048 x 1080 60fps.

How long can the SDI cable be?

It supports 3G-SDI cable runs of up to 150 m.

Does it need external power?

No. It is USB 3.0 bus powered.

Are drivers required?

No. It is driver-free UVC/UAC compatible with Windows, Linux, macOS and Chrome OS.

Can it run continuously?

Yes. It is rated for continuous 24/7 operation.

What warranty does it have?

It has a 2-year warranty.
