Capture the Best Recordings with Magewell USB Capture HDMI 4K Plus
In the era of live streaming, you need access to high-quality recording and playback. Need to replay key moments from your lecture or game sesh? Or listen back to an important meeting or recording? That’s where Magewell USB Capture HDMI 4K Plus has you covered.
This 4K capture device allows you to capture up to 4K DCI resolution from cameras, game consoles such as PS5 and Xbox Series X & Series S, and other devices, straight to your Windows PC, Apple Mac, Linux or Chrome computer.
It also allows you to record from Zoom Meetings, Microsoft Teams, Skype, Google Hangouts, and more.
Enjoy high-res processing, resolution scaling and deinterlacing to give you the best sound and video quality possible. Check it out today.
Play it Back with Magewell USB Capture HDMI 4K Plus
With the Magewell USB Capture HDMI 4K Plus, simply connect to your computer via USB and get ready to record. You’ll be able to play back important meetings, conferences and lectures in no time.
Features include:
- Compatible with Zoom, Microsoft Teams, Skype, Google Hangouts, and others.
- One-channel 4K capture device.
- Capture videos up to 4096x2160, frame rates up to 120fps.
- Capture HDMI + embedded audio.
- Up to 8-channel 24-bit HDMI-embedded audio at 192kHz
- Max Power Consumption: ~7 W
- Loop-through HDMI signal.
- Audio input via mic.
- Extract HDMI embedded audio output via headphones.
- Support HDMI 2.0, Kp60 4:4:4 input.
- Supplied with 1 x USB 3.0 cable.
This innovative device boasts full functionality, with the ability to support video cropping, up/down scaling, de-interlacing, aspect ratio conversion, colour format conversion, frame rate conversion, and more.
Browse our range of AV hardware solutions today for the ultimate set-up.
Discover the Best Range of AV Solutions Today
Here at Leading Solutions, we’ve got you covered for all your audio-visual needs, with a wide range of video capture cards, hardware, tablet holders, mounts and protective cases to choose from.
Not sure what to choose? Our experienced team of experts is here to provide assistance and recommendations. Whatever you need, we have you sorted with the ultimate set-up. For further tips and advice on any of our products, contact us today.

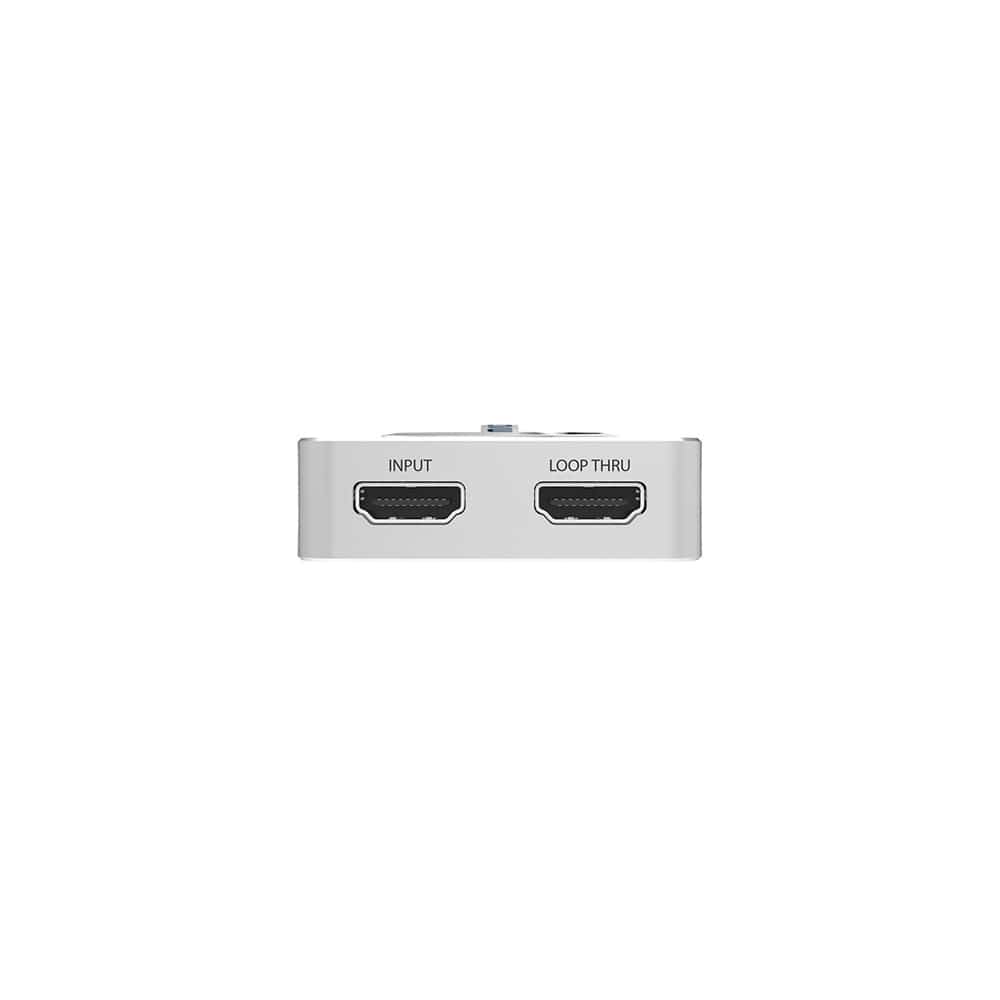

- Single HDMI 2.0 input with full 4Kp60 4:4:4 loop-through output
- Captures up to 4096×2160 via USB 3.0 (practical 3840×2160p30 or 1080p90; limited by host and resolution)
- 3.5mm mic input and headphone output; also functions as a USB audio card
- Up to 8-channel 24-bit HDMI-embedded audio at 192kHz
- Supports 4Kp60 input from game consoles (PS4 Pro, Xbox One S)
- Compatible with Zoom Rooms, Microsoft Teams, OBS Studio, XSplit, VLC, QuickTime, and all DirectShow/V4L2/AVCaptureSession software
- Rated for continuous 24/7 operation
| Specification | Detail |
|---|---|
| Part Number | 32090 |
| Video Input | 1 × HDMI 2.0 (DVI-D compatible) |
| Loop-Through Output | 1 × HDMI (up to 4096×2160 60fps 4:4:4) |
| Max Capture Resolution | 4096×2160 (practical: 3840×2160p30 or 1920×1080p90) |
| Audio Ports | 3.5mm mic in / headphone out |
| Audio Capture | Up to 8-channel 24-bit at 192kHz |
| USB Standard | USB 3.0 (USB 2.0 compatible) |
| Max Power | ~7W (1.4A at 5V) |
| Dimensions | 98.1 × 56.8 × 17mm |
| OS Support | Windows 10/11/Server; Linux (kernel 2.6.35+); macOS 10.9+; Chrome OS |
| Operating Temp | 0-45°C |
Compatibility
- Zoom Rooms, Microsoft Teams, Skype for Business, Google Meet, OBS Studio, XSplit, VLC, QuickTime Player, and any DirectShow (Windows), V4L2 (Linux), or AVCaptureSession (macOS) compatible software.
Frequently Asked Questions
What resolution can the USB Capture HDMI 4K Plus capture?
What resolution can the USB Capture HDMI 4K Plus capture?
Does it have HDMI loop-through?
Does it have HDMI loop-through?
Can I use a microphone or headphones?
Can I use a microphone or headphones?
Can it capture from game consoles?
Can it capture from game consoles?
Which software is it compatible with?
Which software is it compatible with?
What warranty is included?
What warranty is included?
