By Magewell

Magewell Ultra Encode SDI

$1,070.08
$1,070.08
SKU: MG-53050
Availability: Contact to order

Back orders delivered in 14 days

Not available for local pickup. On backorder

Free standard shipping on all orders over $250

Overview

The Magewell Ultra Encode SDI is a standalone network-connected hardware encoder that accepts an SD/HD/3G-SDI input and delivers H.264/H.265 streams to up to six simultaneous destinations using protocols including SRT, RTMP, RTMPS, NDI HX2, HLS, and MPEG-TS. Built-in Wi-Fi and Gigabit Ethernet provide flexible connectivity, and the device is managed entirely through a web browser or Magewell Control Hub without requiring a host computer.

Key features
  • Standalone SDI encoder streaming to up to 6 destinations simultaneously
  • Supports SRT, RTMP/RTMPS, NDI HX2, HLS, MPEG-TS over UDP/RTP, and TVU ISSP protocols
  • Dual-stream H.264/H.265 encoding at up to 16Mbps
  • Native one-click streaming to Twitch, YouTube, and Facebook
  • SD/HD/3G-SDI BNC input with SDI loop-through output
  • 3.5mm Line In and Line Out for analogue audio
  • Wi-Fi 802.11ac and Gigabit Ethernet connectivity
  • Up to 8 text/image overlays per stream; managed via web browser or Magewell Control Hub
  • No host computer required

Warranty

2-year warranty

Product specs Download
Assembly guide Download

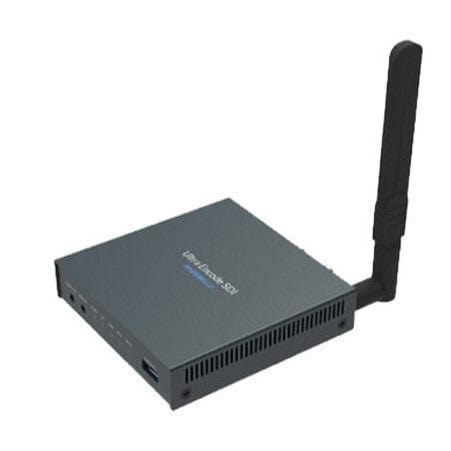

Magewell Ultra Encode SDI (MG-53050), main product image
$1,070.08
$1,070.08

Technical details

A Flexible & Affordable Universal Encoder.

Live H.264/H.265 streaming.

Supports streaming protocols including SRT, NDI|HX, HLS & more.

Suitable for various network environments.

  • Standalone SDI encoder streaming to up to 6 destinations simultaneously
  • Supports SRT, RTMP/RTMPS, NDI HX2, HLS, MPEG-TS over UDP/RTP, and TVU ISSP protocols
  • Dual-stream H.264/H.265 encoding at up to 16Mbps
  • Native one-click streaming to Twitch, YouTube, and Facebook
  • SD/HD/3G-SDI BNC input with SDI loop-through output
  • 3.5mm Line In and Line Out for analogue audio
  • Wi-Fi 802.11ac and Gigabit Ethernet connectivity
  • Up to 8 text/image overlays per stream; managed via web browser or Magewell Control Hub
  • No host computer required
SpecificationDetail
Part Number53050 (current SKU: 53120)
Video Input1 × SD/HD/3G-SDI (BNC)
SDI StandardsSD (ST 259), HD (ST 292), 3Ga/3Gb/3Gb-DL/3Gb-DS (ST 425)
SDI Loop-ThroughYes (BNC)
EncodingH.264 / H.265 (HEVC); dual-stream; up to 16Mbps
Streaming ProtocolsSRT, RTMP/RTMPS, NDI HX2, HLS, MPEG-TS over UDP/RTP, TVU ISSP
Audio Ports3.5mm Line In / Line Out
NetworkGigabit Ethernet (RJ45); Wi-Fi 802.11 a/b/g/n/ac
Max PowerDC 5V/3A (exact max W not published)
Dimensions106.6 × 106.2 × 25mm
Operating Temp0-40°C

Compatibility

  • SD/HD/3G-SDI sources including broadcast cameras, vision mixers, and production switchers. Streams to Facebook Live, Twitch, YouTube, and any SRT/RTMP/HLS/NDI HX2-compatible platform or receiver.

Frequently Asked Questions

How many destinations can it stream to at once?

It streams to up to 6 destinations simultaneously, with dual-stream H.264/H.265 encoding at up to 16Mbps.

Does it have SDI loop-through?

Yes. It has an SDI loop-through output on BNC.

Which streaming protocols are supported?

It supports SRT, RTMP/RTMPS, NDI HX2, HLS, MPEG-TS over UDP/RTP and TVU ISSP.

Can I add overlays?

Yes. You can add up to 8 text or image overlays per stream.

Does it need a computer?

No. It is managed through a web browser or Magewell Control Hub and connects via Wi-Fi or Gigabit Ethernet.

What warranty does it have?

It has a 2-year warranty.
