By Magewell

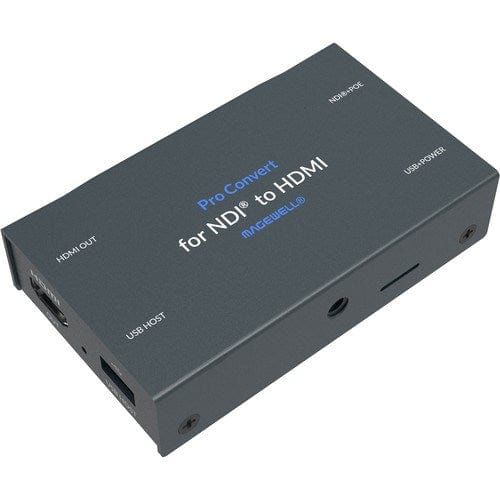

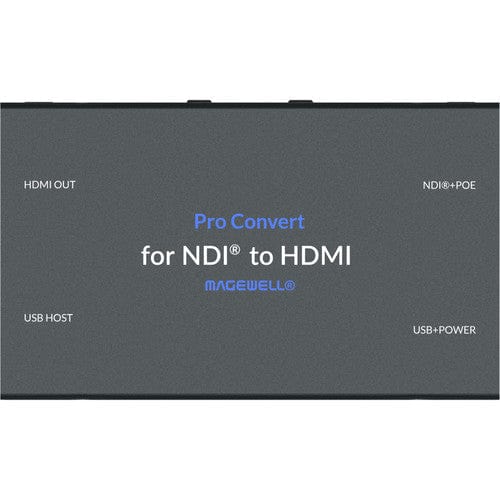

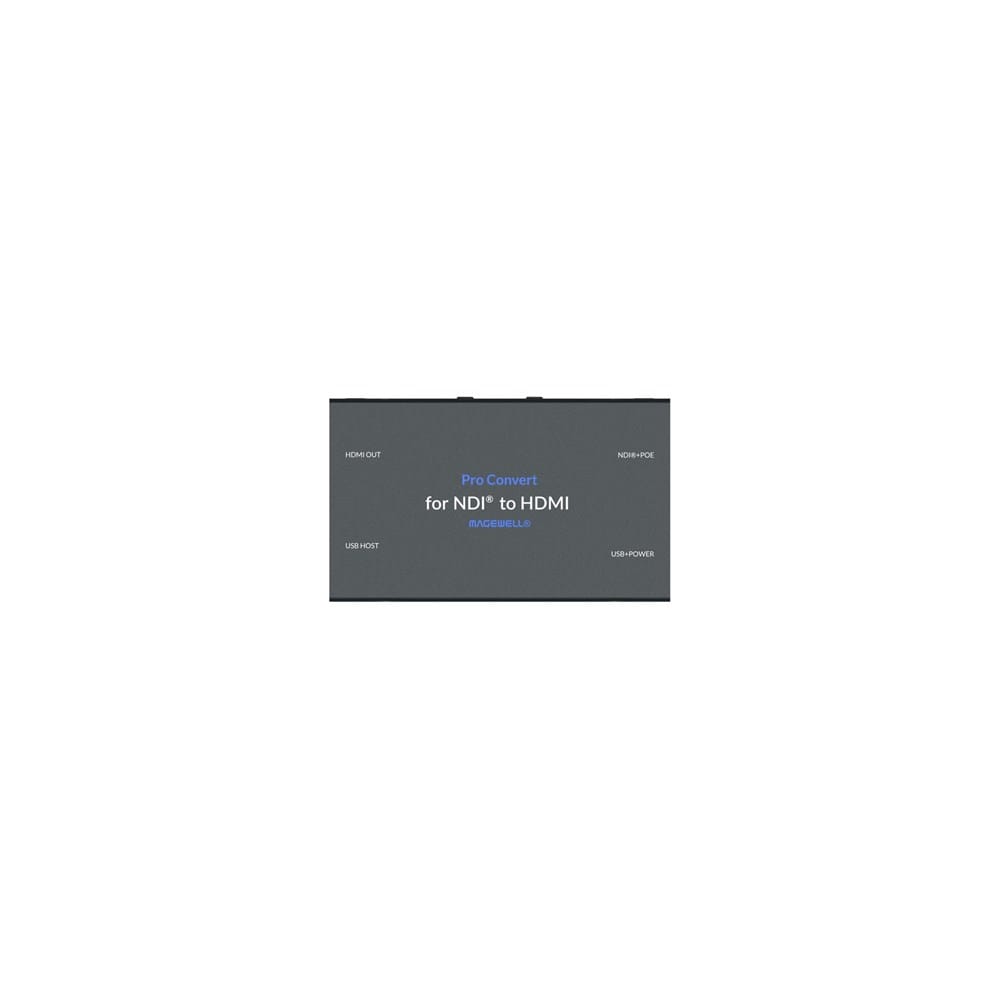

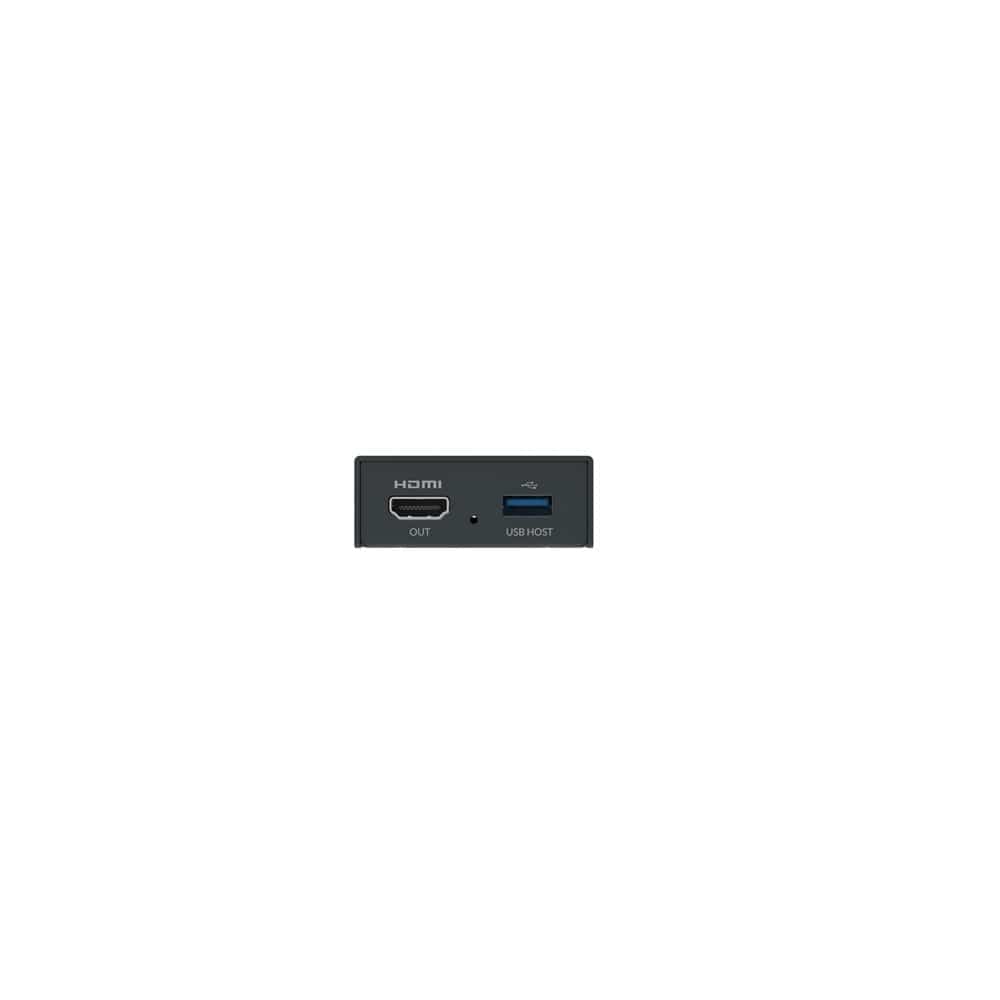

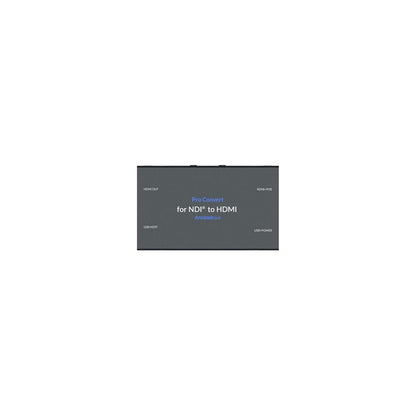

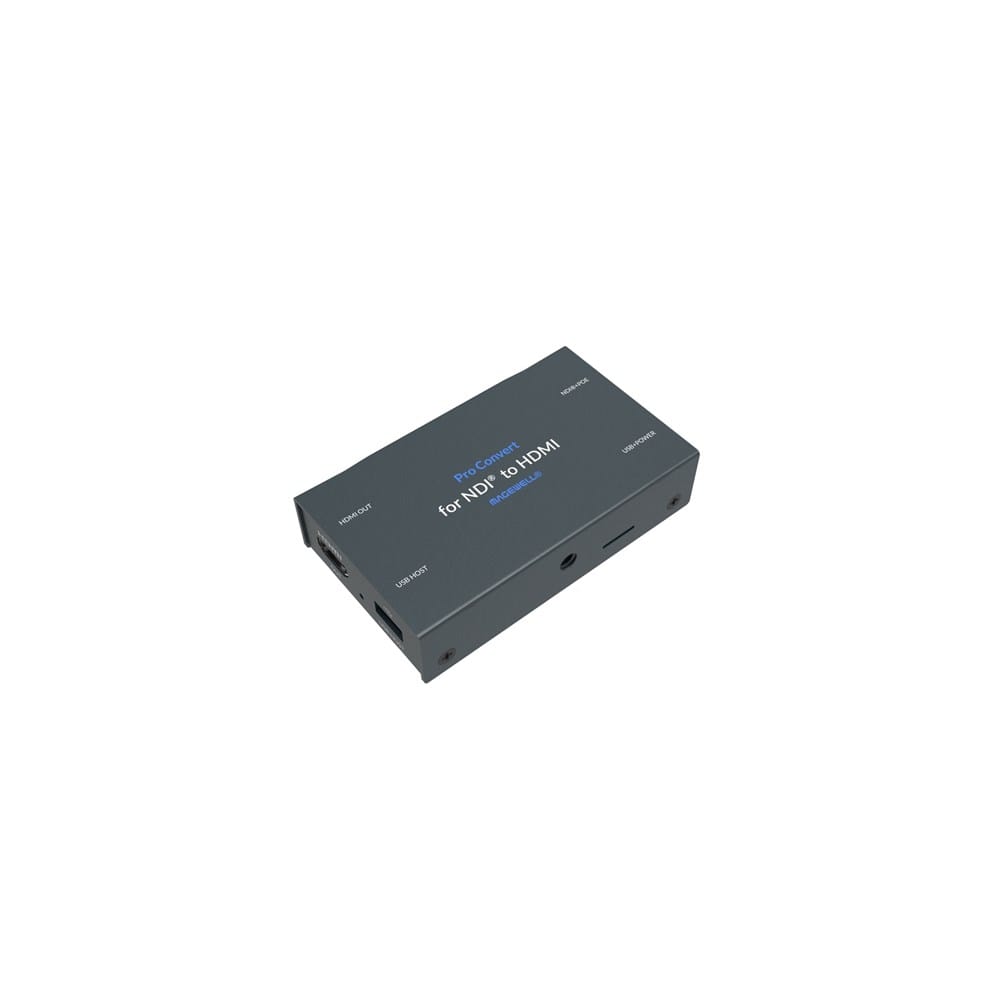

Magewell Pro Convert for NDI to HDMI

$895.93
$895.93
SKU: MG-641000000
Availability: Low stock: 2 left

Overview

The Magewell Pro Convert for NDI to HDMI is a compact NDI decoder that converts Full NDI, NDI HX, HX2, HX3, and RTSP/RTMP/HLS/MPEG-TS streams from an IP network into an HDMI output for display on any standard monitor or projector. PoE support means a single Ethernet cable carries both power and signal, and automatic output optimisation matches the HDMI output to the connected display’s EDID.

Key features
  • Decodes Full NDI, NDI HX/HX2/HX3, RTSP, HTTP, HLS, RTMP, and MPEG-TS streams to HDMI output
  • PoE (IEEE 802.3af) powered via Ethernet, single-cable installation
  • Max HDMI 2.0 output up to 4096×2160 60fps; automatic up/down conversion to match display
  • Supports NDI 6.3
  • 8-channel 48kHz audio output via HDMI
  • Remote configuration via web browser UI and Magewell Control Hub
  • Integrates with Q-SYS and Crestron control systems via official plugins
  • Image flip support for inverted projector installations

Warranty

2-year warranty

Product specs Download
Assembly guide Download
Magewell Convert Magewell Pro Convert for NDI to HDMI
$895.93
$895.93

Technical details

Magewell Pro Convert for NDI to HDMI

Converts a live NDI® stream into HD HDMI signal.

Connects baseband presentation or distribution equipment into IP-based media networks.

Decodes Full NDI and NDI|HX including earlier variants into HD HDMI.

Up-converts the decoded HD signals to 4K for viewing on Ultra HD displays.

  • Decodes Full NDI, NDI HX/HX2/HX3, RTSP, HTTP, HLS, RTMP, and MPEG-TS streams to HDMI output
  • PoE (IEEE 802.3af) powered via Ethernet, single-cable installation
  • Max HDMI 2.0 output up to 4096×2160 60fps; automatic up/down conversion to match display
  • Supports NDI 6.3
  • 8-channel 48kHz audio output via HDMI
  • Remote configuration via web browser UI and Magewell Control Hub
  • Integrates with Q-SYS and Crestron control systems via official plugins
  • Image flip support for inverted projector installations
SpecificationDetail
Part Number64100
Video Output1 × HDMI (HDMI 1.4/2.0); max 4096×2160 60fps 4:4:4 8-bit
NDI InputNDI High Bandwidth, NDI HX/HX2/HX3 (NDI 6.3); also RTSP, HTTP, HLS, RTMP, MPEG-TS over UDP/SRT/RTP
Video DecodersSpeedHQ, H.264, H.265
Audio Output8-channel 48kHz via HDMI
Network10/100/1000Mbps Ethernet; IEEE 802.3af PoE
USBUSB 2.0 Type B; USB 3.0 Type A
Max Power~5W (1.1A at 5V)
Dimensions100.9 × 60.2 × 23.3mm
Operating Temp0-40°C

Compatibility

  • Compatible with any NDI-enabled device or software on the same network. HDMI output connects to any HDMI-equipped monitor, projector, or display. Integrates with Q-SYS and Crestron control systems.

Frequently Asked Questions

Which streams can it decode?

It decodes Full NDI, NDI HX/HX2/HX3, RTSP, HTTP, HLS, RTMP and MPEG-TS streams to HDMI.

What is the maximum output resolution?

HDMI 2.0 output supports up to 4096 x 2160 at 60fps, with automatic up/down conversion to match the display's EDID.

Is it PoE powered?

Yes. It supports IEEE 802.3af PoE for single-cable installation.

Does it output audio?

Yes. It outputs 8-channel 48kHz audio via HDMI.

Does it integrate with control systems?

Yes. It integrates with Q-SYS and Crestron via official plugins, and it can be configured through a web UI or Magewell Control Hub.

What warranty is included?

The Magewell Pro Convert for NDI to HDMI includes a 2-year warranty.
