By Magewell

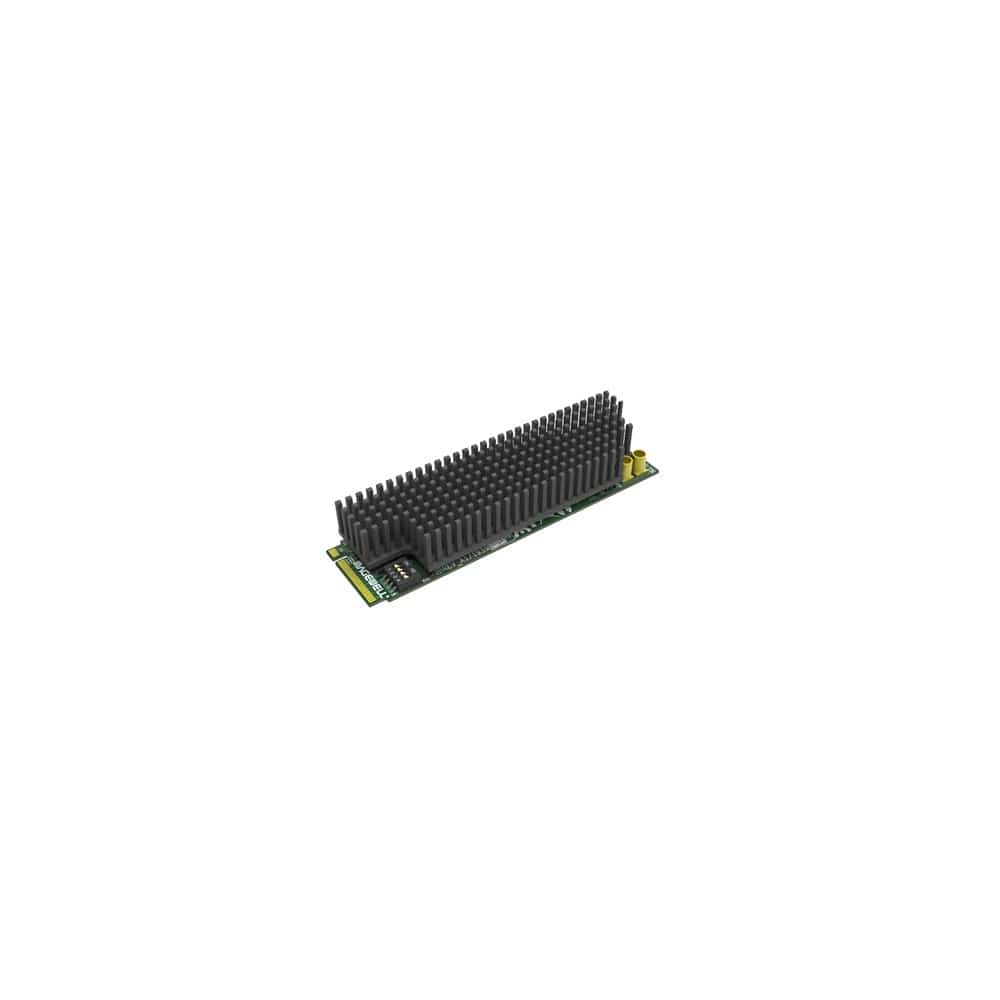

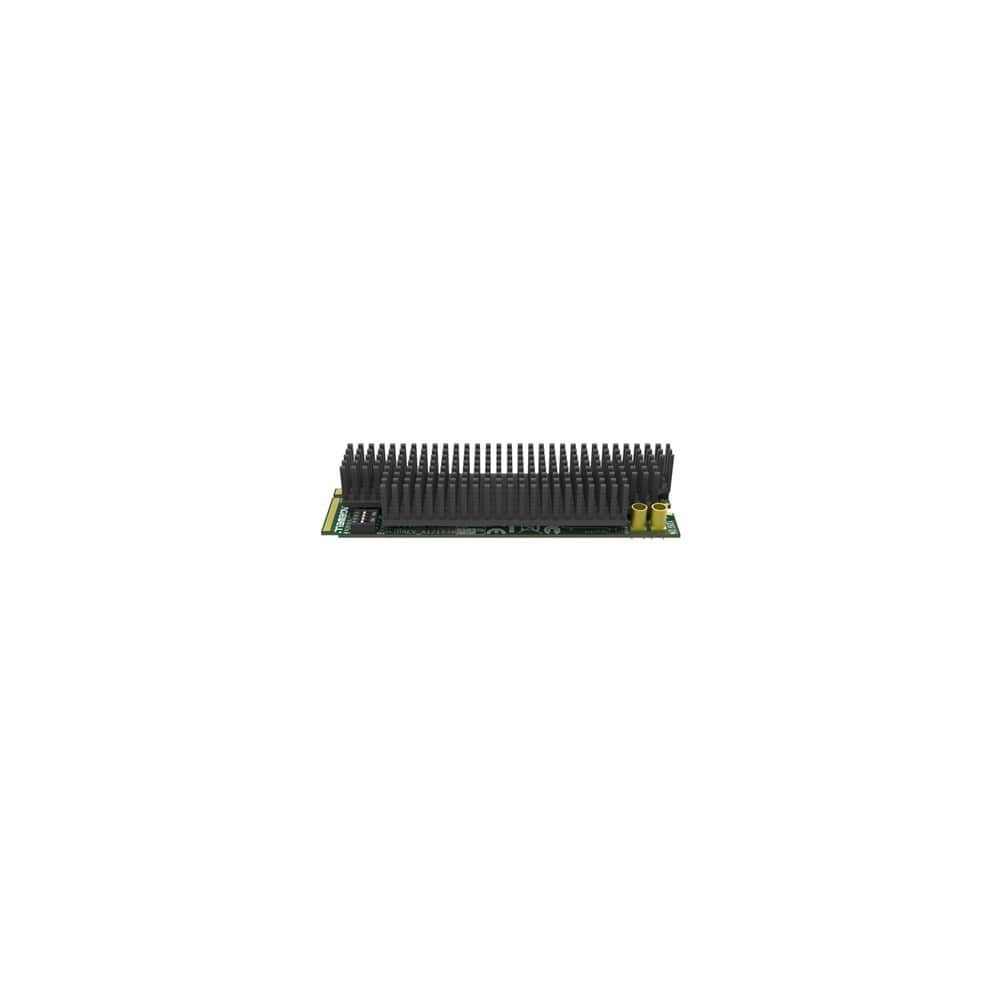

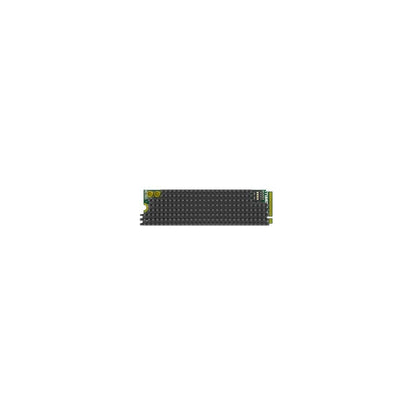

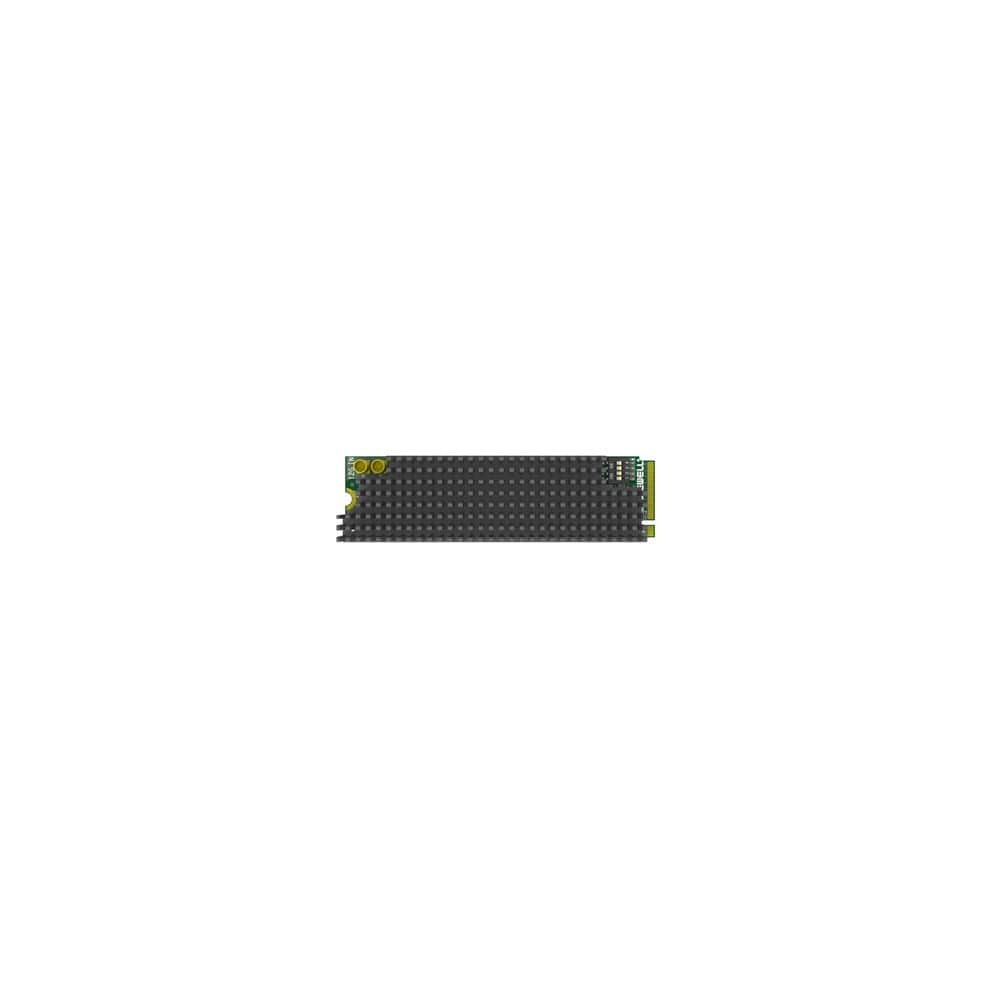

Magewell Eco Capture SDI 4K Plus M.2

$1,689.82
$1,689.82
SKU: MG-115600000
Availability: In stock with supplier

Overview

The Magewell Eco Capture SDI 4K Plus M.2 is a single-channel capture card in a compact M.2 2280 form factor that captures one SD/HD/3G/6G/12G-SDI signal, up to 4096x2160, with an SDI loop-through output and embedded audio. It connects via a PCIe Gen2 x4 M.2 interface and includes an integrated cable equalizer extending SDI cable runs, along with support for 10/12-bit color depth and SMPTE 352 payload extraction.

Key features
  • 12G-SDI 4K Capture: Captures 12G-SDI at up to 4096 x 2160, plus dual-link 6G-SDI and quad-link 3G-SDI.
  • High Frame Rates: Supports capture frame rates up to 240fps.
  • Fast PCIe Gen3: M.2 2280 Type M form factor with a PCIe Gen3 interface.
  • Pro Sync Features: Hardware timestamping and SDK sync for precise multi-source workflows.

Warranty

2-year warranty

Magewell I/O (Capture) Magewell Eco Capture SDI 4K Plus M.2
$1,689.82
$1,689.82

Technical details

The Magewell Eco Capture 12G SDI 4K Plus M.2 is the highest-performance card in the Eco Capture range, capturing a single 12G-SDI signal up to 4K in a compact M.2 form factor. It is designed for demanding, space-constrained systems that need high-frame-rate 4K capture.

Perfect for high-end embedded 4K systems, the Eco Capture 12G SDI 4K Plus M.2 delivers flagship SDI performance in an M.2 card.

  • 12G-SDI 4K Capture: Captures 12G-SDI at up to 4096 x 2160, plus dual-link 6G-SDI and quad-link 3G-SDI.
  • High Frame Rates: Supports capture frame rates up to 240fps.
  • Fast PCIe Gen3: M.2 2280 Type M form factor with a PCIe Gen3 interface.
  • Pro Sync Features: Hardware timestamping and SDK sync for precise multi-source workflows.

Frequently Asked Questions

What does the Eco Capture 12G SDI 4K Plus M.2 capture?

It captures a single 12G-SDI signal at up to 4096 x 2160, as well as dual-link 6G-SDI and quad-link 3G-SDI.

What frame rates does it support?

It supports capture frame rates up to 240fps.

What interface does it use?

It is an M.2 2280 Type M card with a fast PCIe Gen3 interface.

Does it support multi-source synchronisation?

Yes. It offers hardware timestamping and SDK sync for precise multi-source workflows.

Where does it sit in the Eco Capture range?

It is the highest-performance card in the Eco Capture range.

Should I choose this or the Eco Capture Dual SDI M.2?

Choose this card for one 4K 12G-SDI source at up to 240fps. For two HD SDI sources up to 2048 x 1080, the Eco Capture Dual SDI M.2 is the better fit.
