By Audinate

Dante AVIO AES3 IO Adapter 2x2

$455.00
$455.00
SKU: ADP-AES3-AU-2X2
Availability: Contact to order

Interested? Contact us

Not available for local pickup. Contact us for availability

Free standard shipping on all orders over $250

Overview

The Dante AVIO AES3 IO Adapter (ADP-AES3-AU-2X2) adds Dante network connectivity to AES3/EBU-equipped audio equipment, supporting 2-in/2-out channels via high-quality XLR connectors with built-in asynchronous sample rate conversion. Powered by PoE with no separate supply required, it is automatically discovered on the network and is suited to connecting amplifiers, speaker processors, mixing consoles, DSPs, and video systems to a Dante audio infrastructure.

Key features
  • Connects AES3/EBU equipment to a Dante network with 2-in/2-out XLR channels
  • Built-in asynchronous sample rate conversion for seamless interfacing
  • Sample rates up to 96kHz; 16, 24, and 32-bit audio support
  • Excellent dynamic range and SNR: >135dB
  • Dante Audio over IP and AES67 RTP transport formats
  • PoE powered, no AC adapter required
  • Configurable device latency: 1, 2, or 5ms
  • Compatible with Dante Domain Manager
  • Road-ready sonically welded ABS enclosure
Product specs Download

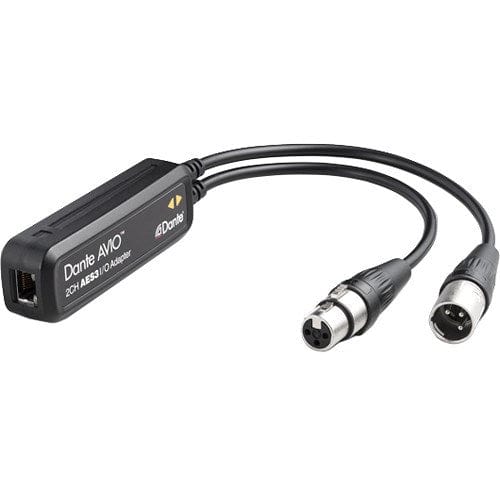

Audinate Dante AVIO AES3 IO Adapter 2x2 (ADP-AES3-AU-2X2), main product image
$455.00
$455.00

Technical details

Audio Channels: 2 in, 2 out
Signal to Noise Ratio: > 135dB
Connectors: RJ45, 1 XLR-M, 1 XLR-F
Power: Class 1 802.3af PoE
Power Consumption ASE3 column: < 2 watts
Asynchronous Sample Rate Conversion: Yes
Sample Rates: 44.1, 48, 96 kHz
Bit depth: 24
Dante Device Latency: 1, 2, or 5ms (configurable using Dante Controller)
Network Transport: Dante Audio over IP, AES67 RTP
Operating Temp: -10 to +50C
Storage Temp: -25 to +70C
Part Number: ADP-AES3-AU-2X2

  • Connects AES3/EBU equipment to a Dante network with 2-in/2-out XLR channels
  • Built-in asynchronous sample rate conversion for seamless interfacing
  • Sample rates up to 96kHz; 16, 24, and 32-bit audio support
  • Excellent dynamic range and SNR: >135dB
  • Dante Audio over IP and AES67 RTP transport formats
  • PoE powered, no AC adapter required
  • Configurable device latency: 1, 2, or 5ms
  • Compatible with Dante Domain Manager
  • Road-ready sonically welded ABS enclosure
SpecificationDetail
Part NumberADP-AES3-AU-2X2
Audio Channels2 in, 2 out
ConnectorsRJ45, 1 × XLR-M, 1 × XLR-F
PowerClass 1 802.3af PoE
Impedance110 Ohm balanced
SNR>135dB
Asynchronous Sample Rate ConversionYes
Sample Rates44.1, 48, 96 kHz
Bit Depth24-bit
Dante Device Latency1, 2, or 5ms (configurable)
Network TransportDante Audio over IP, AES67 RTP

Compatibility

  • Compatible with any AES3/EBU-equipped device including amplifiers, powered speakers, DSPs, mixing consoles, microphone preamplifiers, and SDI video systems. Connects to any Dante-enabled device on the same network. AES67 compatible for connection to non-Dante AoIP networks.

Frequently Asked Questions

Which AES3 equipment can I connect to it?

Any AES3/EBU-equipped device, such as amplifiers, powered speakers, DSPs, mixing consoles, mic preamps and SDI video systems.

How is it powered?

It is powered by PoE (Class 1 802.3af), so no separate power supply is needed.

What connectors does it have?

It has an RJ45 port, one XLR-M and one XLR-F connector.

Does it support sample rate conversion?

Yes. It has built-in asynchronous sample rate conversion, supporting 44.1, 48 and 96kHz.

Is it AES67 compatible?

Yes. It supports Dante Audio over IP and AES67 RTP.

What is the part number?

The part number is ADP-AES3-AU-2X2.
