TDD-1000 BookBuddy Connect – Smart Desk Booking & Docking Station for Hybrid Workspaces
The Qbic TDD-1000 BookBuddy Connect is an award-winning, all-in-one desk booking and docking station designed to streamline hybrid work environments. Combining intuitive desk reservation with high-speed device connectivity, it transforms any shared workspace into a personalized, BYOD-ready workstation. With features like NFC/RFID authentication, dual 4K display support, and 100W USB-C charging, the TDD-1000 enhances productivity and simplifies IT management. Built with long-term software support, it is designed to evolve with future Android updates.
- Desk Booking: NFC/RFID or smartphone tap with real-time LED availability indicators
- Display: 3.9” IPS touchscreen (480x480) with LED status indicators
- Connectivity Ports: USB-C, HDMI, DisplayPort, Gigabit Ethernet
- Charging Power: Up to 100W USB-C fast charging

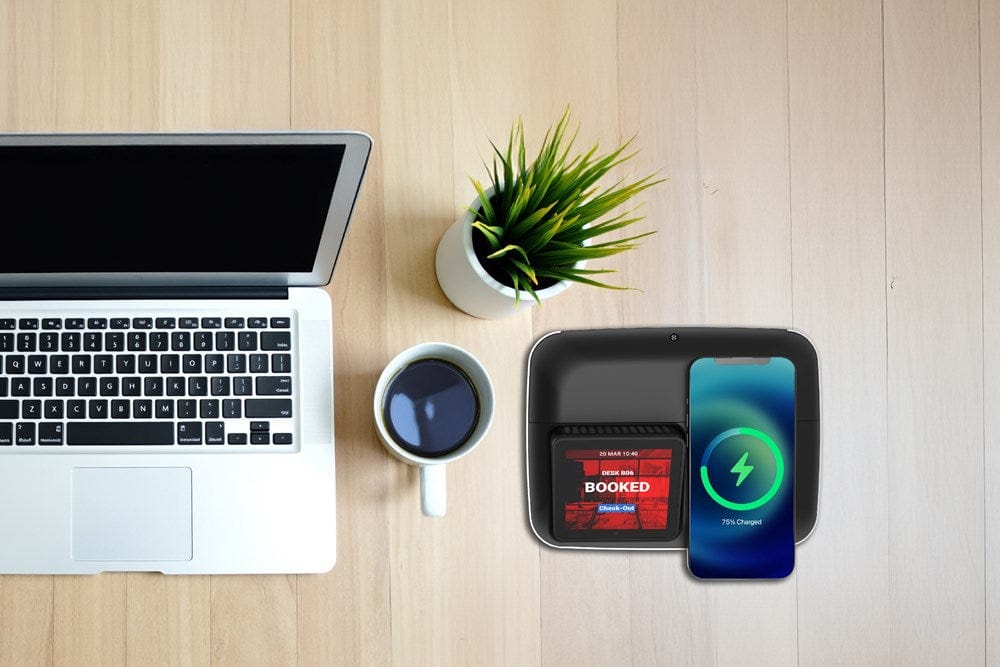

- Wireless Charging: 15W wireless charging support
- Authentication: NFC/RFID access options

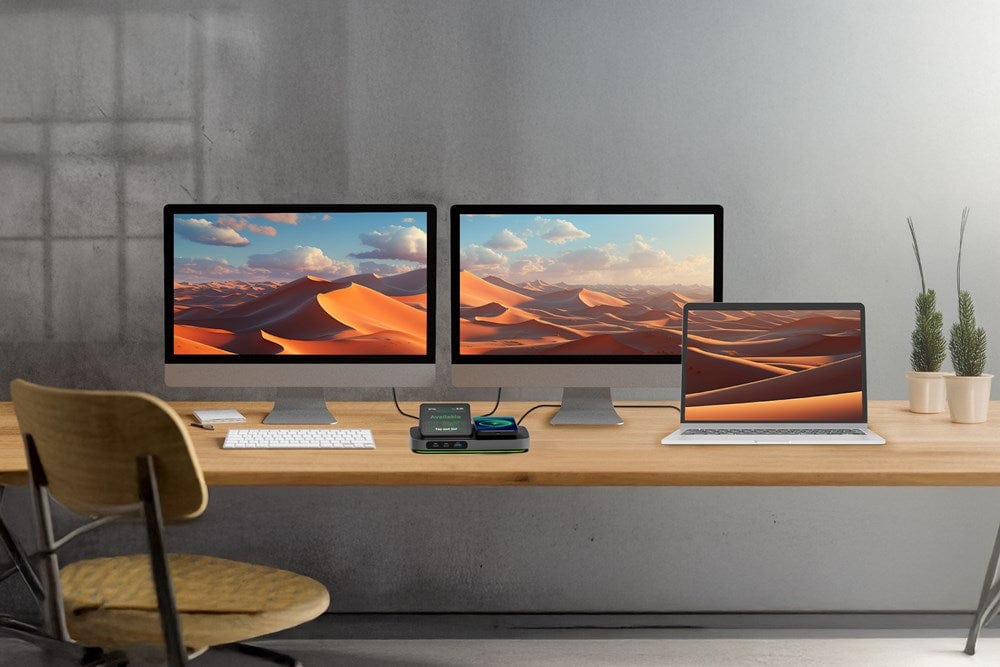

- Display Support: Dual 4K monitor output
- Cable Management: Integrated for a clean, organized workspace
- Operating System: Android 15 with regular security updates and upgrade support
- Security: Qbic Fortify+ for firmware, software, and hardware protection
- IT Management: Centralized monitoring, USB management, API integration
- Development Support: Qbic Quick Development Kit (QDK) with prebuilt APIs
- Warranty: Two-year standard warranty.

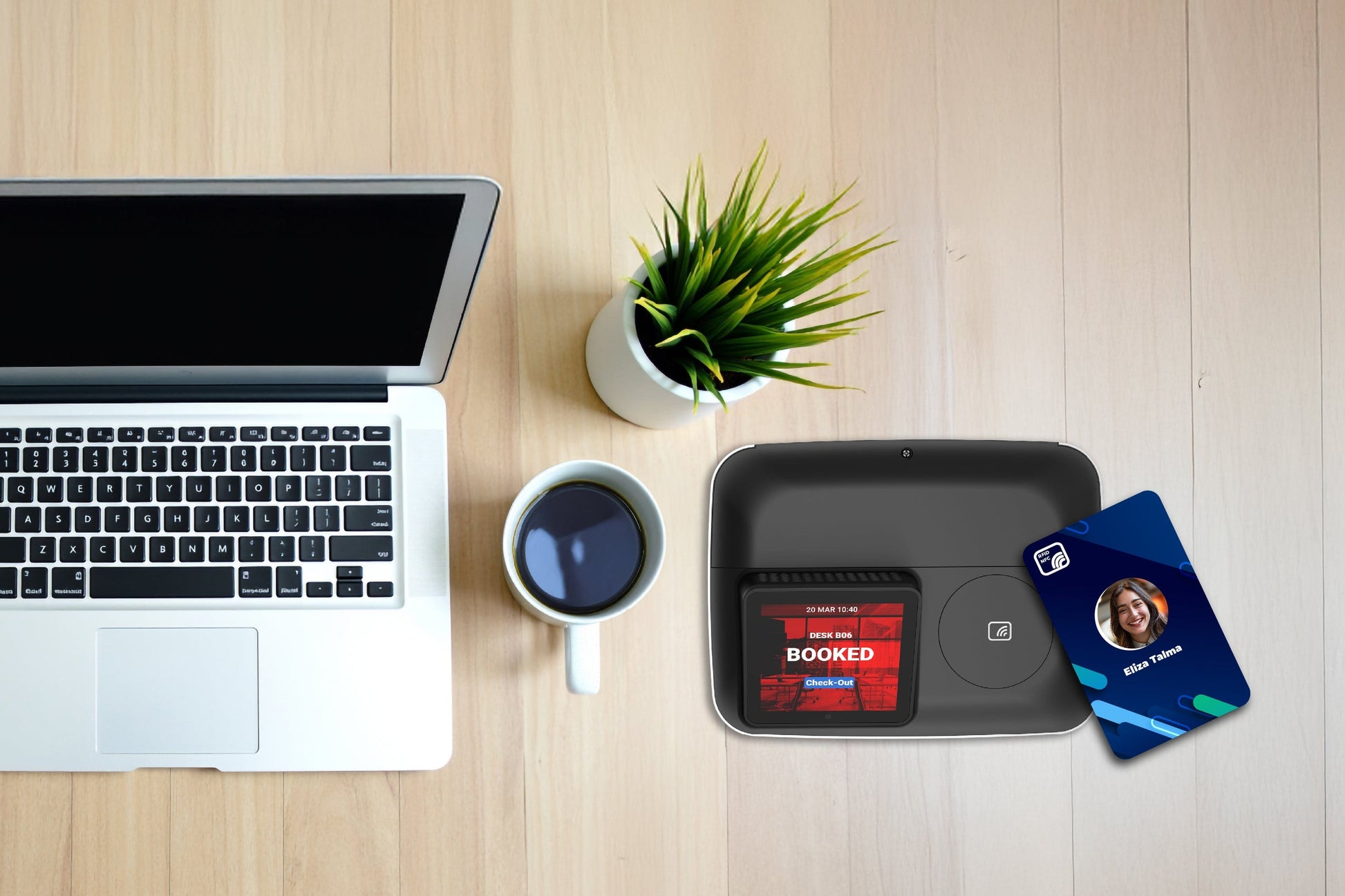

In a hybrid office setting, employees can effortlessly reserve a desk by tapping their ID card or smartphone on the TDD-1000. Upon docking their personal devices, they gain immediate access to dual 4K displays, high-speed internet, and charging capabilities. IT administrators benefit from centralized control and analytics, optimising workspace utilization and enhancing overall efficiency.
- Two devices in one: desk booking smart panel combined with a full professional docking station
- 3.9" direct-bonding touch display, 480 x 480 resolution, 400 nits

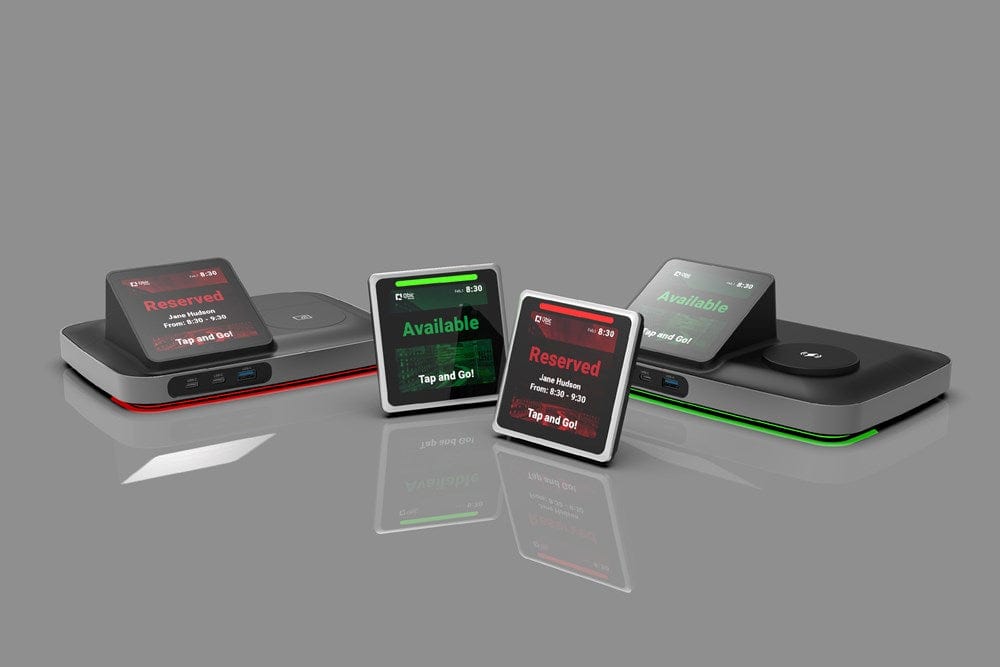

- Dynamic U-shape LED indicator, instant desk availability at a glance
- NFC/RFID: tap to book via NFC card (13.56MHz; 125KHz Ver. H option) or optional 15W wireless charging

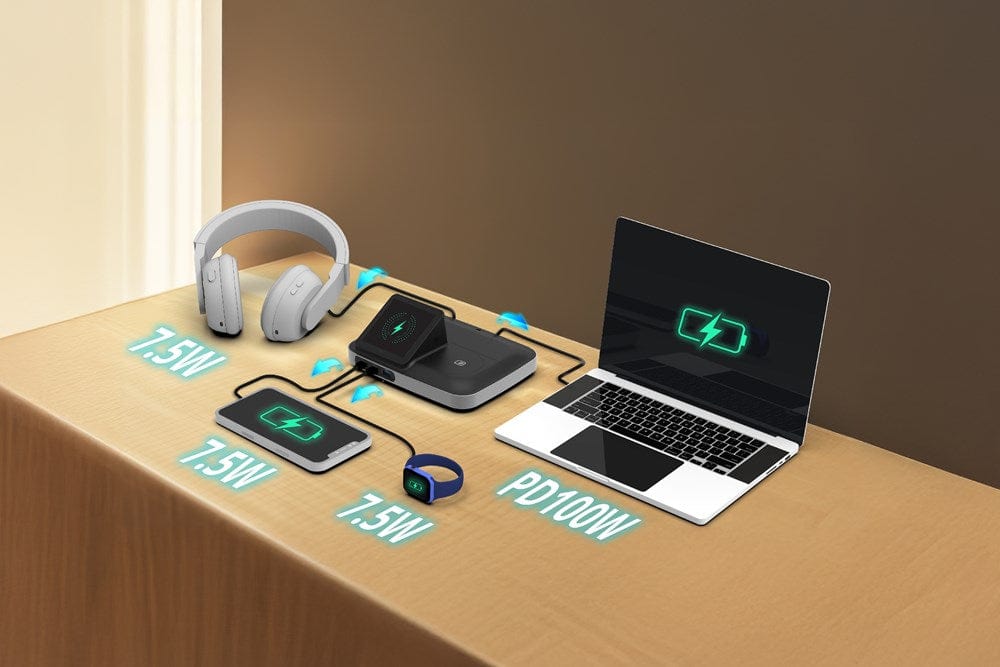

- 100W fast charging for laptop via USB-C (PD 3.0)

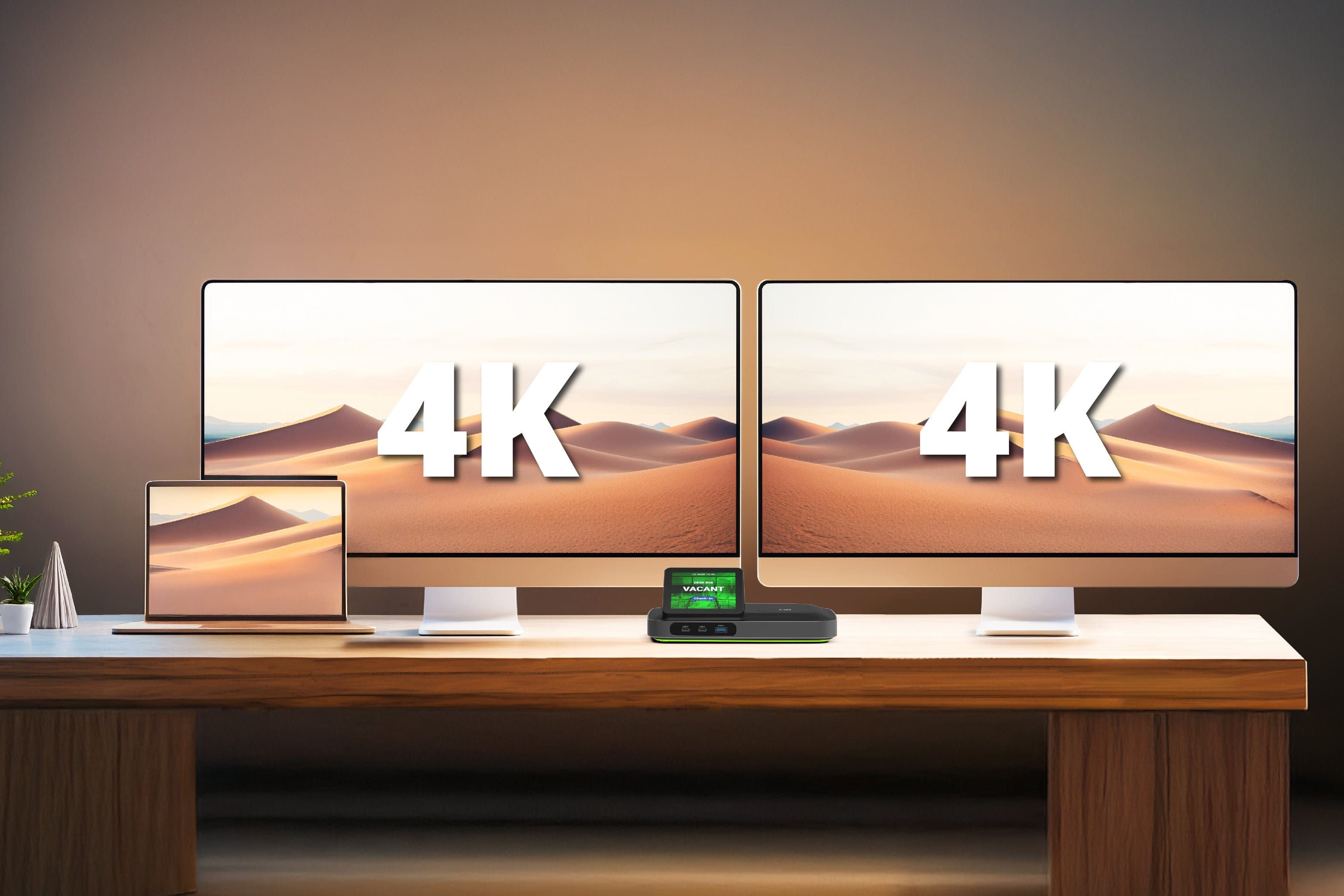

- Dual 4K display output: HDMI 2.0 + DisplayPort 1.4
- 10Gbps SuperSpeed+ USB: 2 x USB 3.2 Type-C + 1 x USB 3.0 Type-A on front
- Gigabit Ethernet (RJ45)
- BYOD-ready, connects any laptop via single USB-C cable
- Kensington Lock for physical security
- Wi-Fi 5, Bluetooth 5.0, Ambient Light Sensor
- Android 13 OS on i.MX8M Nano CPU
- Qbic Fortify+ security: Access Protection, Data Protection, Environment Protection
- Remote Configuration Center (RCC): manage all Qbic devices via web browser, individually or in batch
- Custom app deployment: install APK files via USB, contact Leading Solutions for compatible APK files
- Regular Android OS security patching and long-term component support
| Specification | Detail |
|---|---|
| OS | Android 13 |
| CPU | i.MX8M Nano |
| Memory | 2GB |
| Storage | 16GB eMMC |
| Display Size | 3.9" direct-bonding touch |
| Resolution | 480 x 480 |
| Colour Depth | 16.7M |
| Brightness | 400 nits |
| Viewing Angle (H/V) | 170° / 170° |
| LED Indicator | 1 x U-shape (dynamic status) |
| NFC/RFID | Opt.1, 13.56MHz; Opt.2, 13.56MHz & 125KHz (Ver. H); Opt.3, 15W wireless charger |
| Wi-Fi | Wi-Fi 5 |
| Bluetooth | 5.0 |
| Sensor | Ambient light |

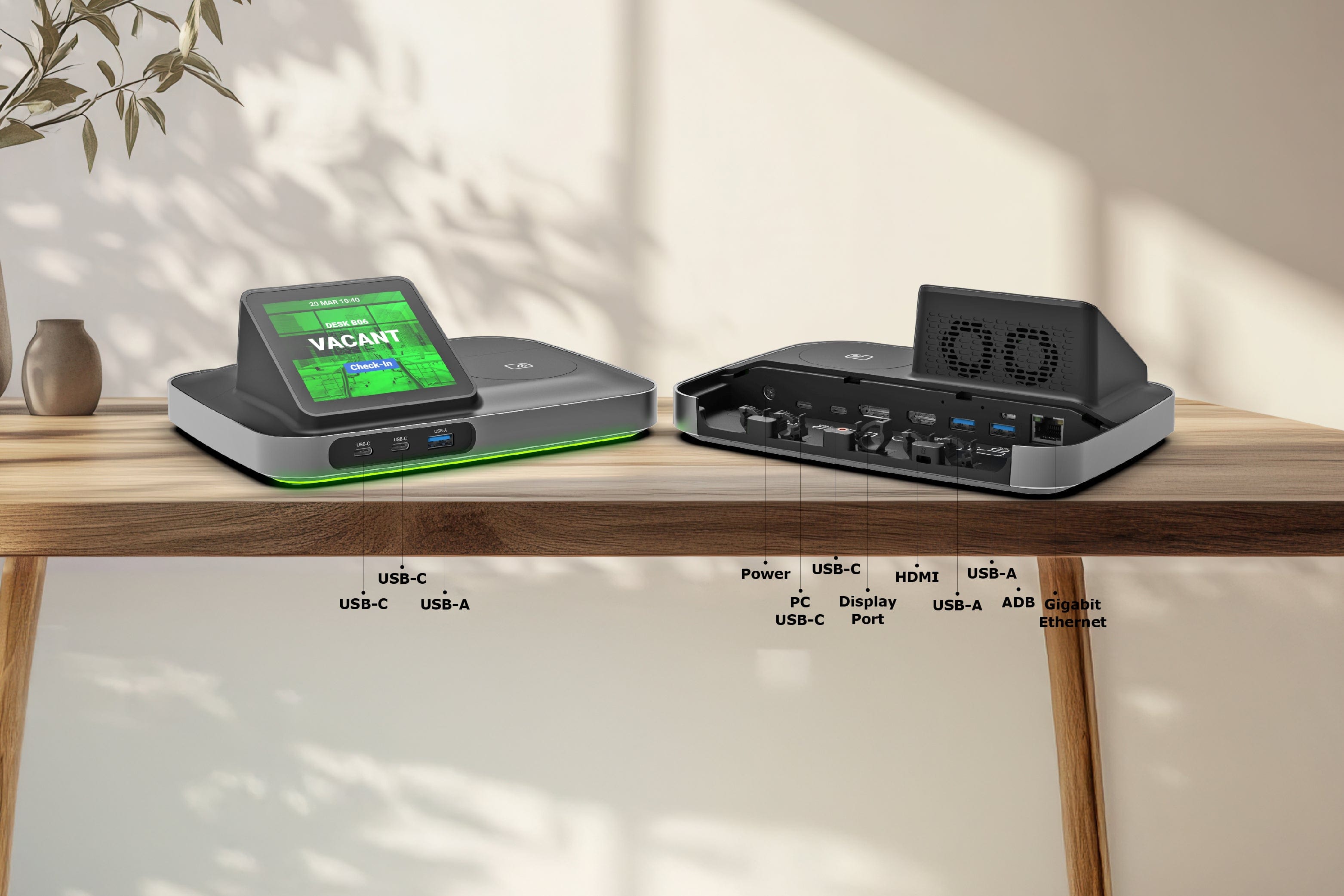

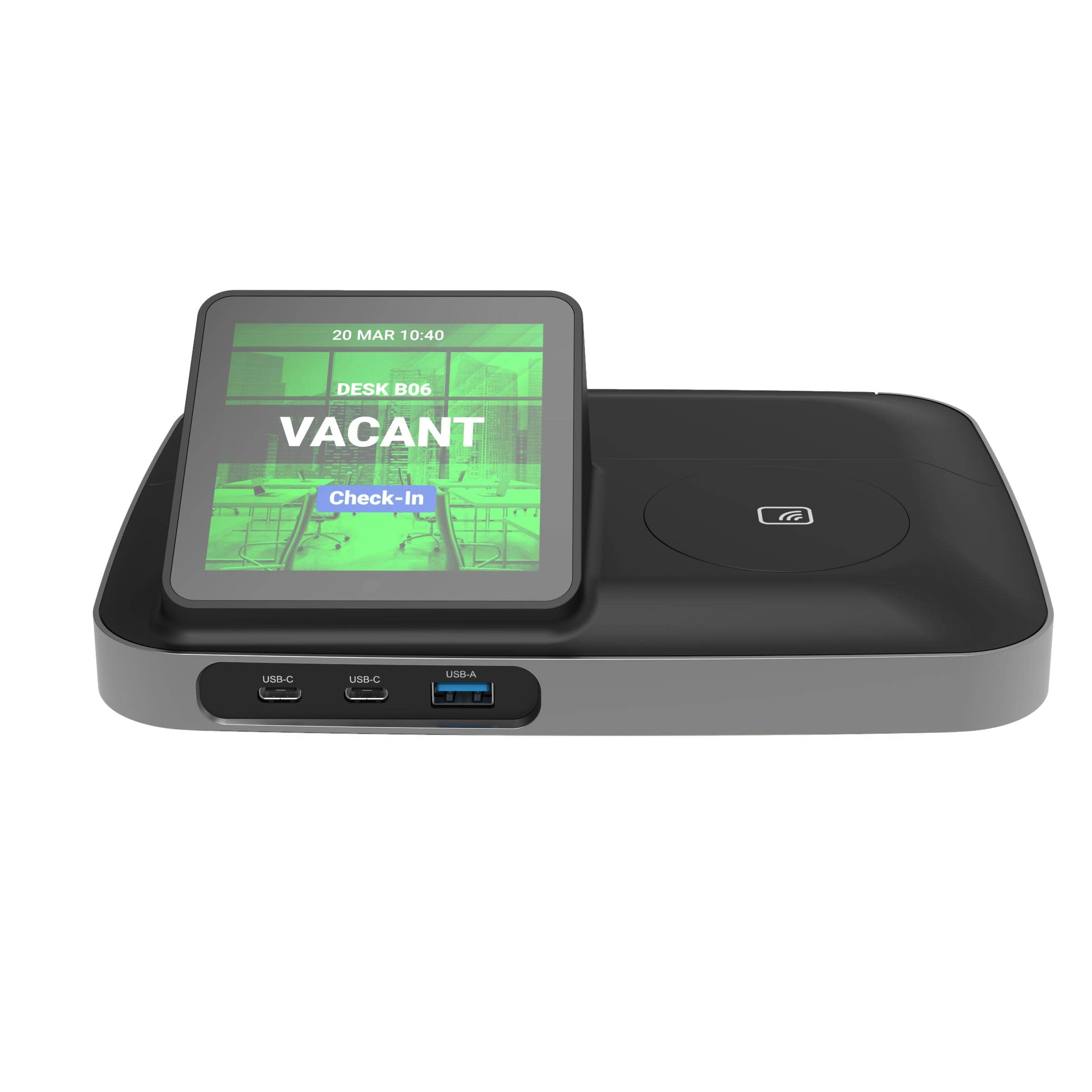

| Front I/O | 2 x USB 3.2 Type-C, 1 x USB 3.0 Type-A |

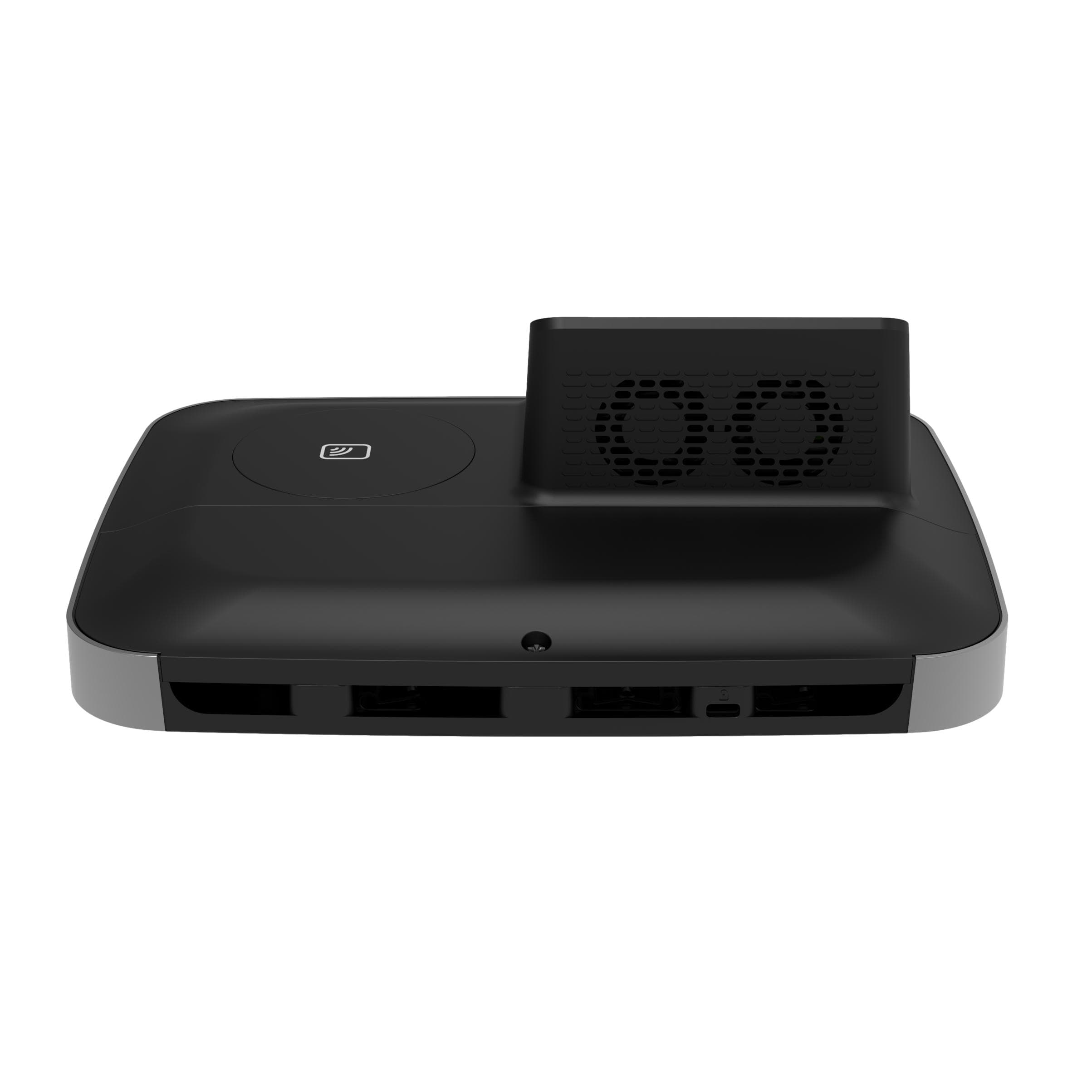

| Rear I/O | 1 x USB 3.2 Type-C (laptop, up to 100W), 1 x USB 3.2 Type-C (7.5W), 2 x USB 2.0 Type-A, 1 x USB Type-C (ADB), 1 x HDMI 2.0, 1 x DisplayPort 1.4, 1 x LAN RJ45 (Gigabit), 1 x DC jack (19V∼21V) |
| Kensington Lock | Yes |
| Dimensions (WxDxH) | 215.5 x 163.5 x 76.36mm |
| Weight | 780g |
| Operating Temp | 0°C to 40°C |
| Storage Temp | -10°C to 70°C |
| In the Box | 180W Power Adapter (PD 3.0 Type-C), USB-C to USB-C cable |
| SKU | Model |
|---|---|
| TDD-1000 | NFC 13.56MHz (standard) |
| TDD-1000H | NFC 13.56MHz & 125KHz (Ver. H) |
| TDD-1000W | 15W wireless charger (replaces NFC) |
| Detail | Value |
|---|---|
| Includes | 180W power adapter, USB-C to USB-C laptop cable |
Compatibility
- Any laptop with USB-C (single-cable connection for data
- display output
- 100W charging)
- HDMI 2.0 (4K) + DisplayPort 1.4 (4K)
- dual screen
- Standard 13.56MHz / Ver.
- H adds 125KHz
- Hot-desking and hybrid workplace desk booking
- corporate campuses with shared workstation pools
- co-working spaces
- enterprise BYOD environments
