10.1" Lite Smart Panel PC, Full HD IPS Display, NFC/RFID AI-Ready

$1,399.00 - $1,625.00
SKU: TD-1070L-S
Availability: Contact to order

Free standard shipping on all orders over $250

$1,399.00
$1,399.00

Overview

The Qbic TD-1070 Lite is a purpose-built 10.1" Android 12 space management and digital signage panel with dynamic dual side-bar LED indicators that signal room availability at a glance, green for available, red for occupied. NFC/RFID with Apple Wallet compatibility enables tap-to-book and contactless access, while Wi-Fi 5 with 802.1X enterprise authentication and an embedded AI accelerator ensure secure, reliable 24/7 operation.

Key features
  • 10.1" FHD 1920 x 1200 IPS touch display, 430 nits, hardness 7H AF Direct-Bonding
  • Dynamic dual side-bar LED indicators, instant room availability at a glance
  • Android 12 OS with embedded AI accelerator
  • NFC/RFID with Apple Wallet compatibility (O version)
  • Wi-Fi 5 (802.11 a/b/g/n/ac) with 802.1X enterprise wireless authentication
  • PoE+ (25W), single cable delivers power and network connectivity
  • Bluetooth Beacon (BLE) built in
  • Independent hardware watchdog ensures automatic recovery from software faults
  • Qbic Fortify+ security: Access Protection, Data Protection, Environment Protection
  • Remote Configuration Center (RCC): manage all Qbic devices via web browser, individually or in batch
  • Custom app deployment: install APK files via USB or Micro SD, contact Leading Solutions for compatible APK files
  • Regular Android OS security patching and long-term component support
  • Glass, surface, and recessed mounting options

Warranty

2-year warranty, extendable to 5 years

Certifications
  • ISO/IEC 27001:2022, Information Security Management (Certificate TW25/00000583, valid to 9 July 2028)
  • CE / UKCA / FCC / IC / CB
Product specs Download
Qbic 10.1-inch Lite Smart Panel PC, NFC 13.56MHz, Full HD IPS display, main product image
$1,399.00
$1,399.00

Technical details

The Qbic TD-1070 Lite is a compact 10.1" touch display designed for streamlined integration into meeting rooms and smart offices. Its high-resolution screen, PoE power supply, and responsive multi-touch capability provide reliable performance in space management, room scheduling, and digital signage.

Key Features:

  • Display Size: 10.1" high-resolution screen.
  • Power: PoE for simplified installation.
  • Connectivity: Includes HDMI, USB, and LAN support.

Applications:
Ideal for professional environments needing easy-to-install digital displays for interactive and management applications.

Warranty: Two-year standard warranty.

Optional Mullion Mount and Recess Wall Mount available separately.

  • 10.1" FHD 1920 x 1200 IPS touch display, 430 nits, hardness 7H AF Direct-Bonding
  • Dynamic dual side-bar LED indicators, instant room availability at a glance
  • Android 12 OS with embedded AI accelerator
  • NFC/RFID with Apple Wallet compatibility (O version)
  • Wi-Fi 5 (802.11 a/b/g/n/ac) with 802.1X enterprise wireless authentication
  • PoE+ (25W), single cable delivers power and network connectivity
  • Bluetooth Beacon (BLE) built in
  • Independent hardware watchdog ensures automatic recovery from software faults
  • Qbic Fortify+ security: Access Protection, Data Protection, Environment Protection
  • Remote Configuration Center (RCC): manage all Qbic devices via web browser, individually or in batch
  • Custom app deployment: install APK files via USB or Micro SD, contact Leading Solutions for compatible APK files
  • Regular Android OS security patching and long-term component support
  • Glass, surface, and recessed mounting options
SpecificationDetail
OSAndroid 12
CPUARM Quad-core Cortex-A55 up to 2.0GHz (64-bit)
Memory2GB LPDDR4
Storage32GB eMMC
Display Size10.1"
Resolution1920 x 1200 (FHD)
Brightness430 nits
Contrast1000:1
TouchYes, multi-touch, AF Direct-Bonding, Hardness 7H
Viewing Angle85°/85°/85°/85°
LED Indicator2 x side-bar (dynamic status)
Speaker2W x 2
NFC/RFIDOpt.1, 13.56MHz; Opt.2, H version (13.56M & 125KHz, HID); Opt.3, O version (Apple Wallet)
Bluetooth Beacon (BLE)Yes
PoEPoE+ (25W)
WatchdogYes, independent
Ethernet1 x RJ45 (10M/100M/1000M) PoE+
WLAN802.11 a/b/g/n/ac, Wi-Fi 5 (optional)
USB2 x USB 2.0 Type A / 1 x USB 3.0 Type C (ADB)
Audio1 x 3.5mm stereo
Expansion Storage1 x Micro SDHC/SDXC slot
Video DecoderH.264 / H.265, VC-1, MPEG-4, VP9/VP8
Dimensions (WxDxH)242.9 x 173.9 x 21.15mm
MountingGlass / Surface / Recessed
HousingPC+ABS
Operating Temp0°C to 50°C
SKUModel
TD-1070LStandard NFC (13.56MHz)
TD-1070L-HH version NFC (13.56MHz & 125KHz, HID)
TD-1070L-OO version NFC (Apple Wallet compatible)
DetailValue
OptionalWi-Fi 5 module

Compatibility

NFC/RFID
  • Standard 13.56MHz / H version adds 125KHz HID / O version adds Apple Wallet compatibility
Mounting
  • Glass mount
  • Surface mount
  • Recessed mount
Suitable for
  • Meeting room and conference space management
  • hot-desking and shared workspace booking
  • corporate reception and lobby
  • visitor check-in and contactless access control
  • education and healthcare room scheduling

Features

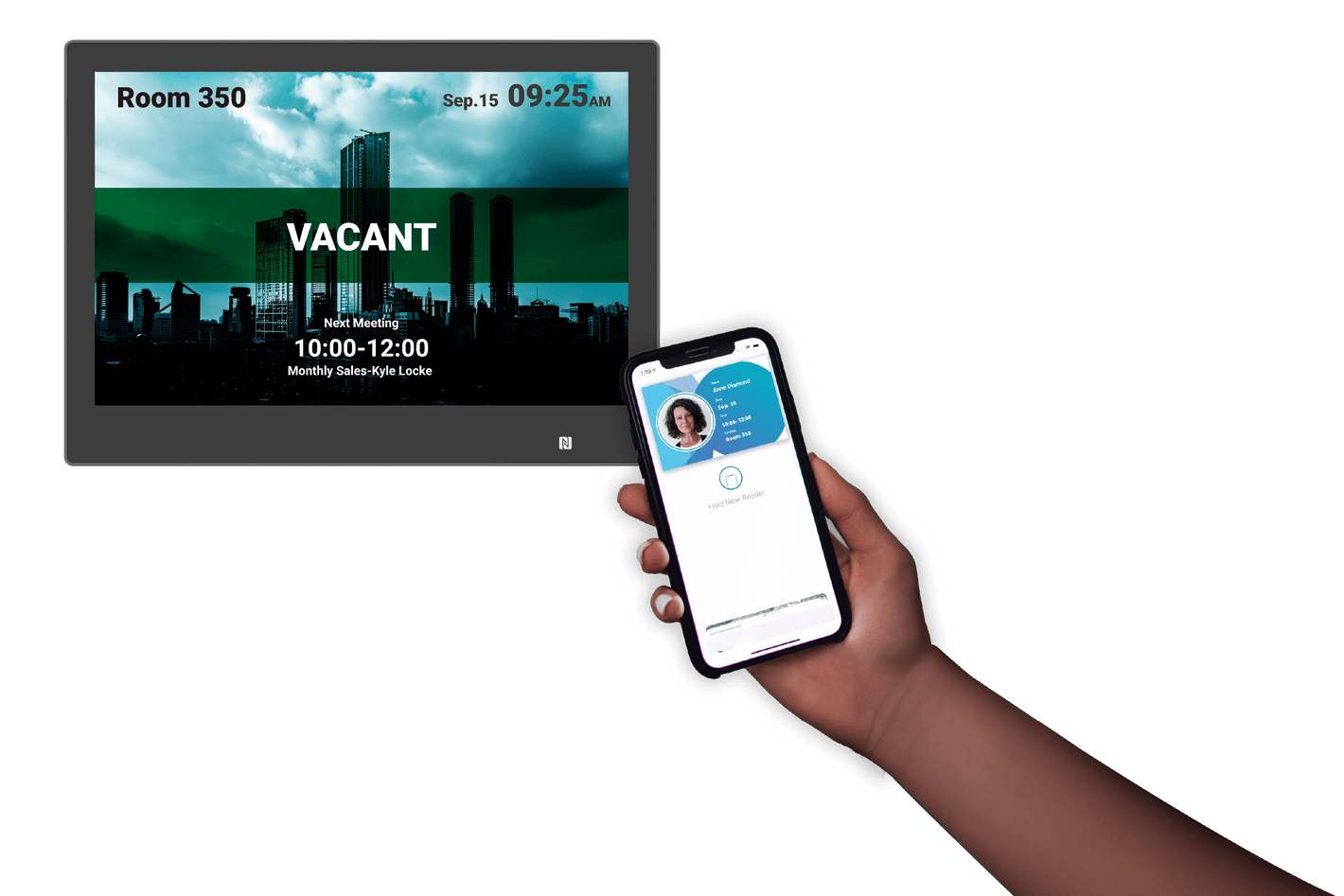

  • NFC/RFID Apple Wallet Support

    The TD-1070 Lite’s NFC/RFID integration, now compatible with Apple Wallet, allows for quick and secure user authentication with a simple tap of your device.

  • Android 12 Unleashed

    Safeguard your meeting room system with the TD-1070 Lite’s Android 12 operating system, designed to keep your data and privacy protected with regular security patch & OS updates and penetration test compliance.

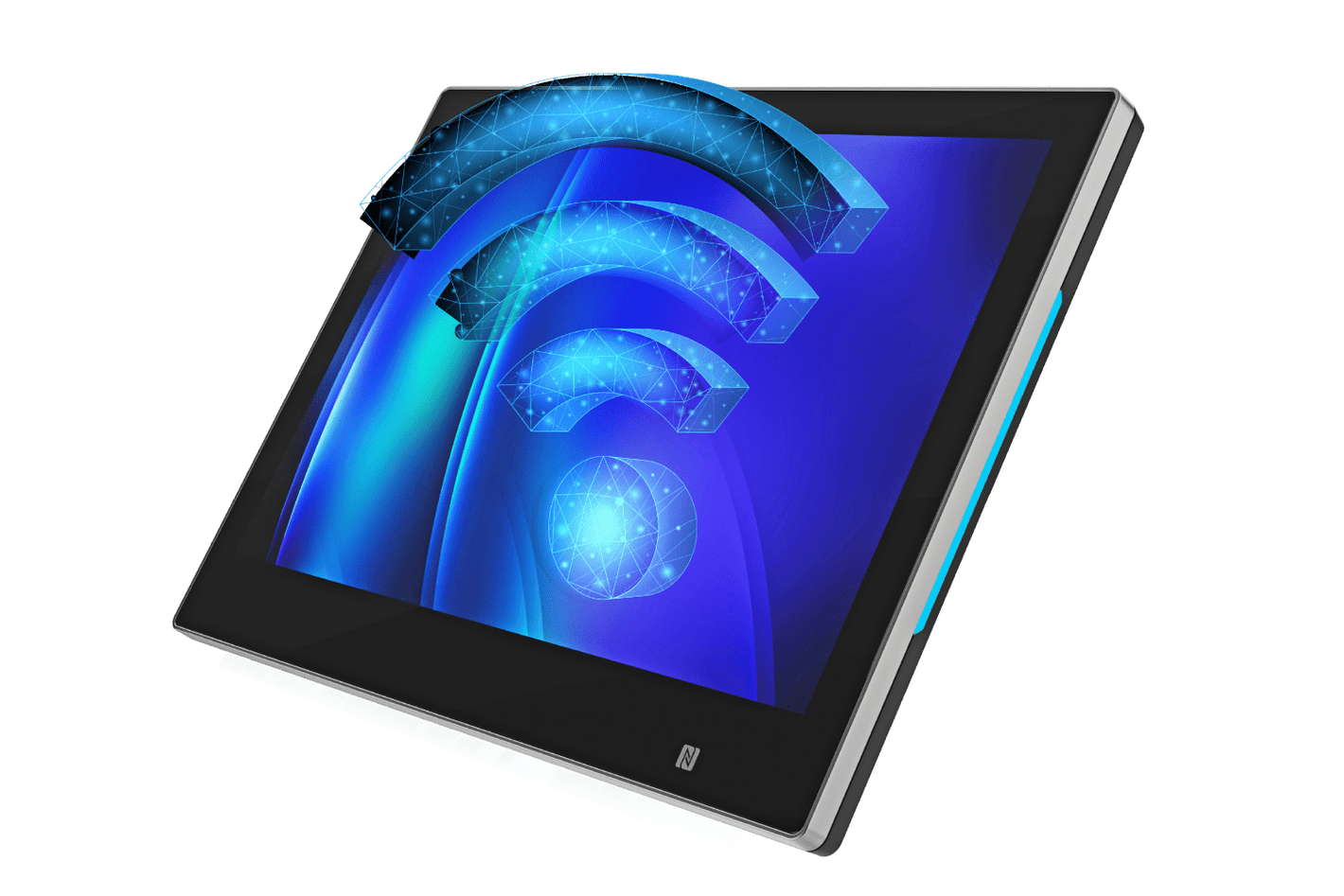

  • Unleash Wireless Freedom

    Unlock a new level of wireless performance with Wi-Fi 5 (802.11ac) dual-band support, delivering lightning-fast speeds, improved range, and enhanced reliability, ensuring your meeting room stays connected like never before.

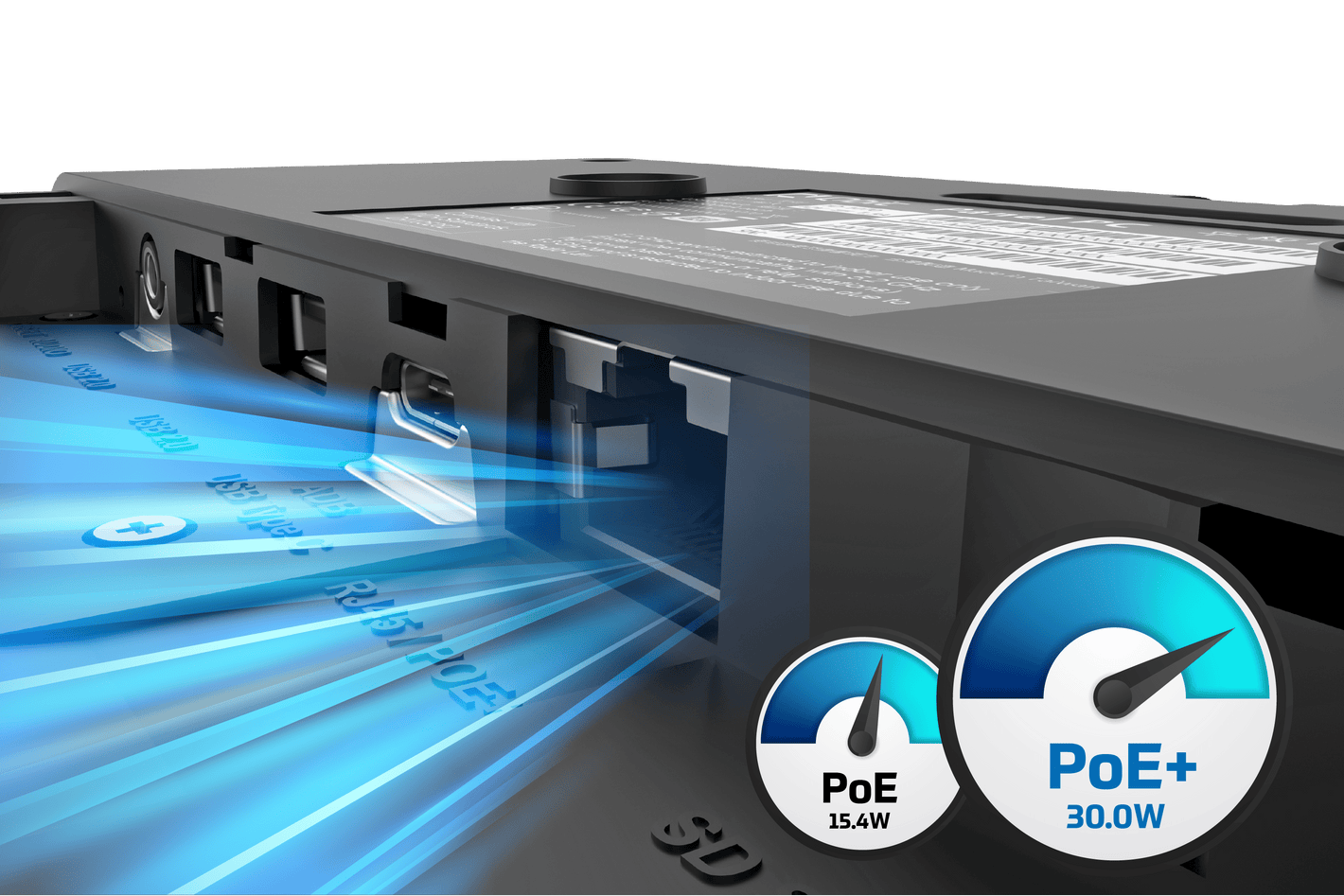

  • Connect, Power, Simplify with PoE+

    Experience the convenience and versatility of the TD-1070 Lite’s PoE+ support. This game-changing feature allows for easy, single-cable installation, providing both power and data connectivity.

Frequently Asked Questions

Does it support enterprise Wi-Fi security?

Yes. Optional Wi-Fi 5 (802.11 a/b/g/n/ac) supports 802.1X enterprise wireless authentication.

What is the display resolution?

It has a 10.1" Full HD 1920 x 1200 IPS touch display with 430 nits brightness.

Does it show room availability?

Yes. Dual side-bar LED indicators show green for available and red for occupied.

What NFC options are available?

It comes in three versions: standard 13.56MHz NFC, H version with 125KHz HID, and O version with Apple Wallet compatibility.

How is it powered?

It is powered by PoE+ (25W), so a single cable provides power and network.

What mounting options are available?

It supports glass, surface and recessed mounting, with optional mullion and recess wall mounts sold separately.
